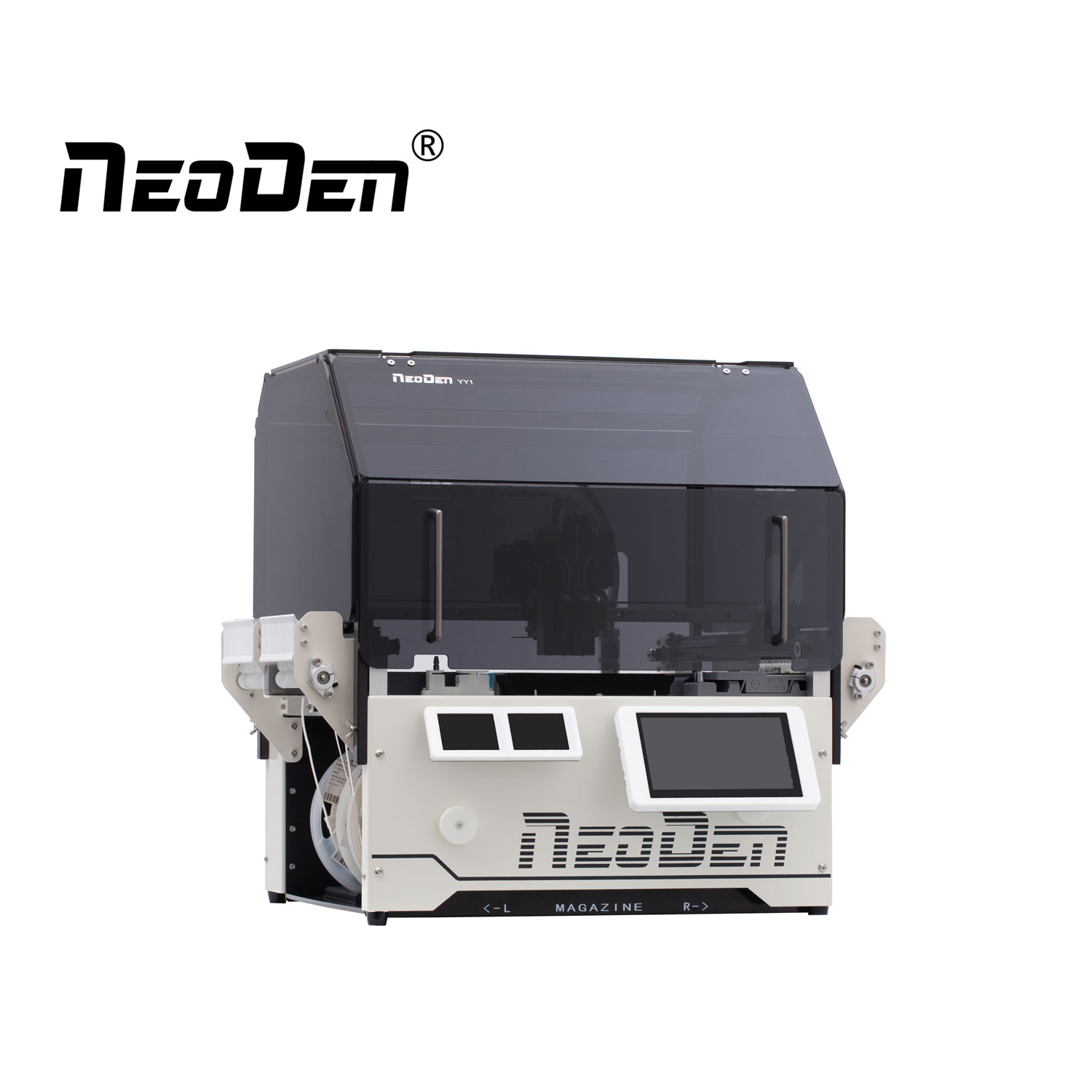

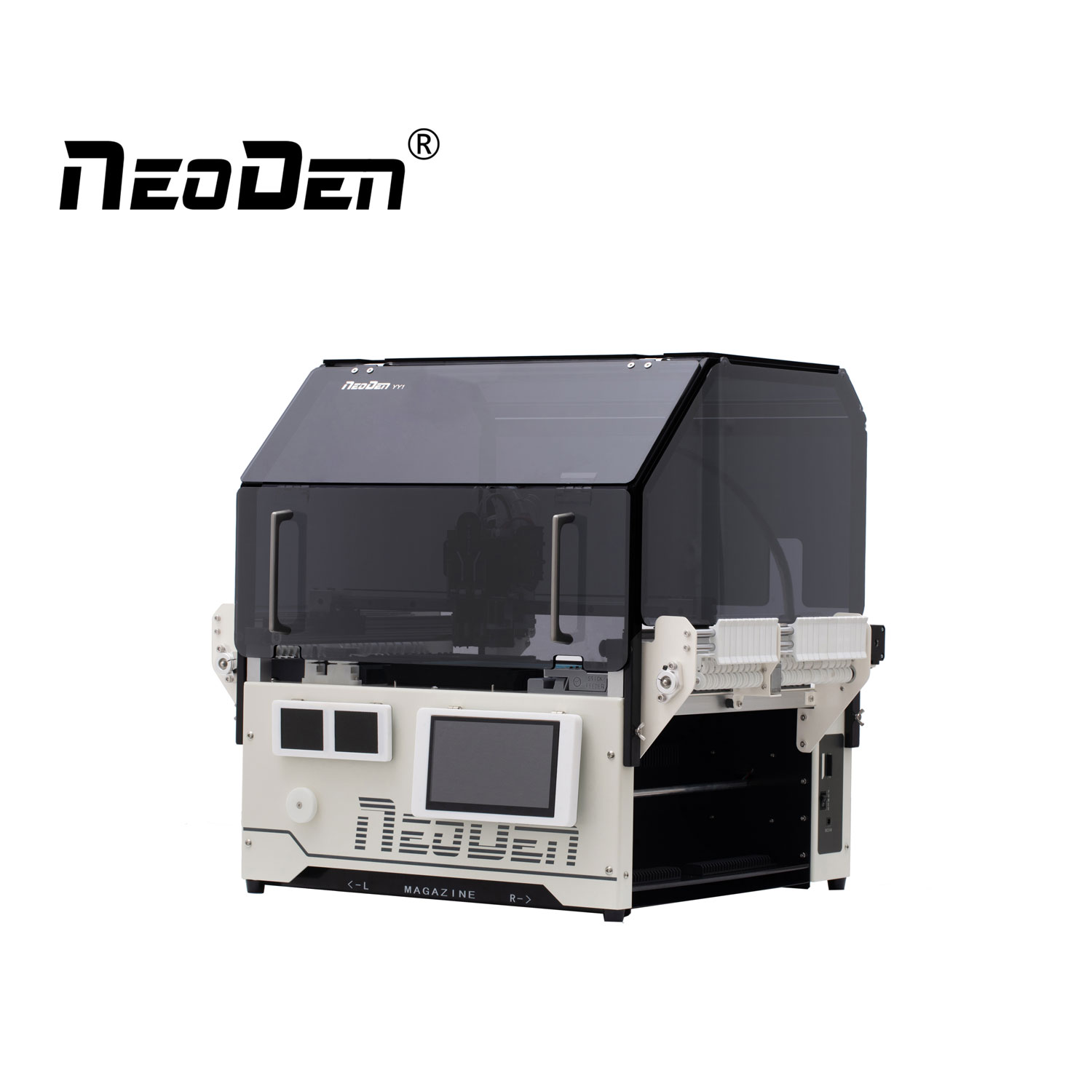

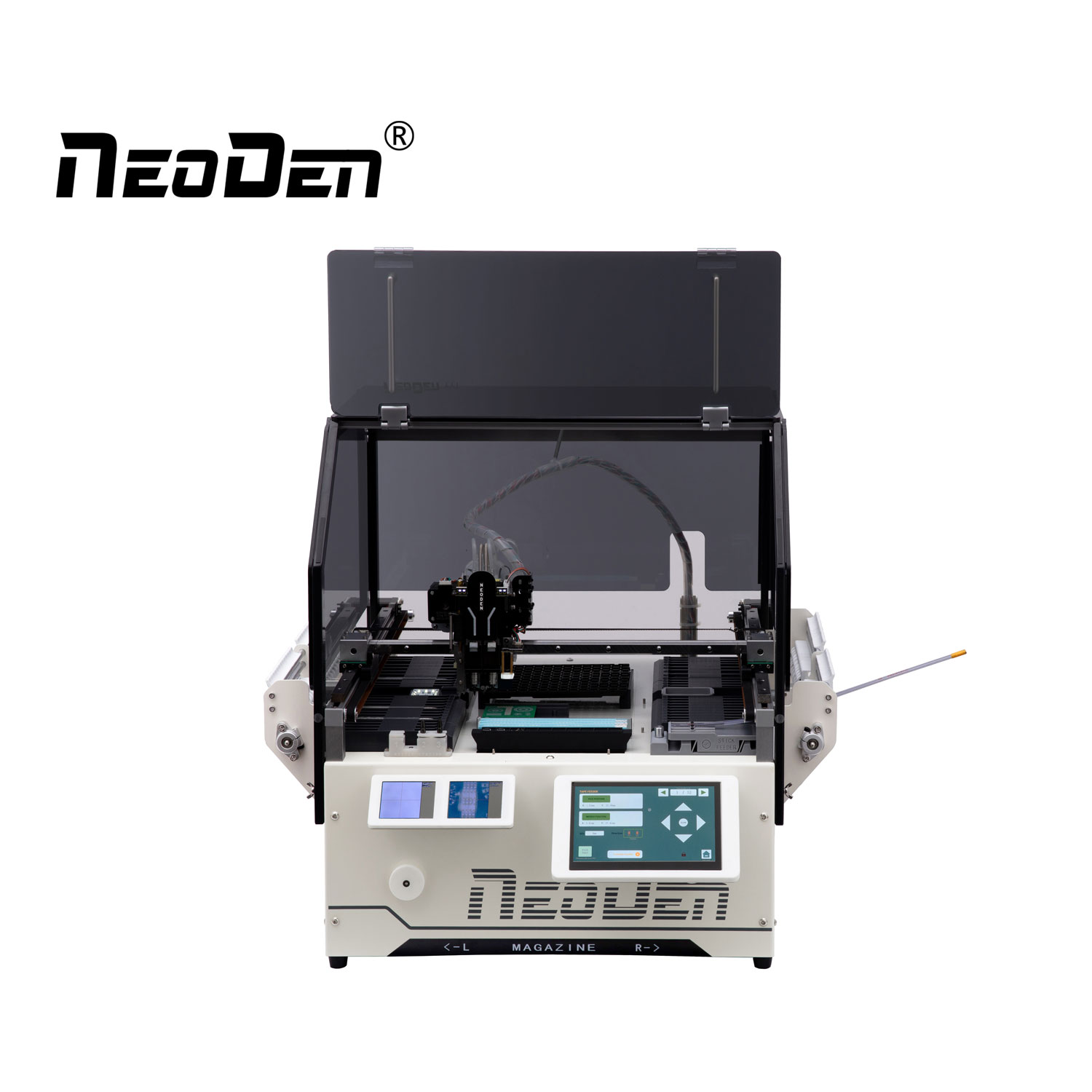

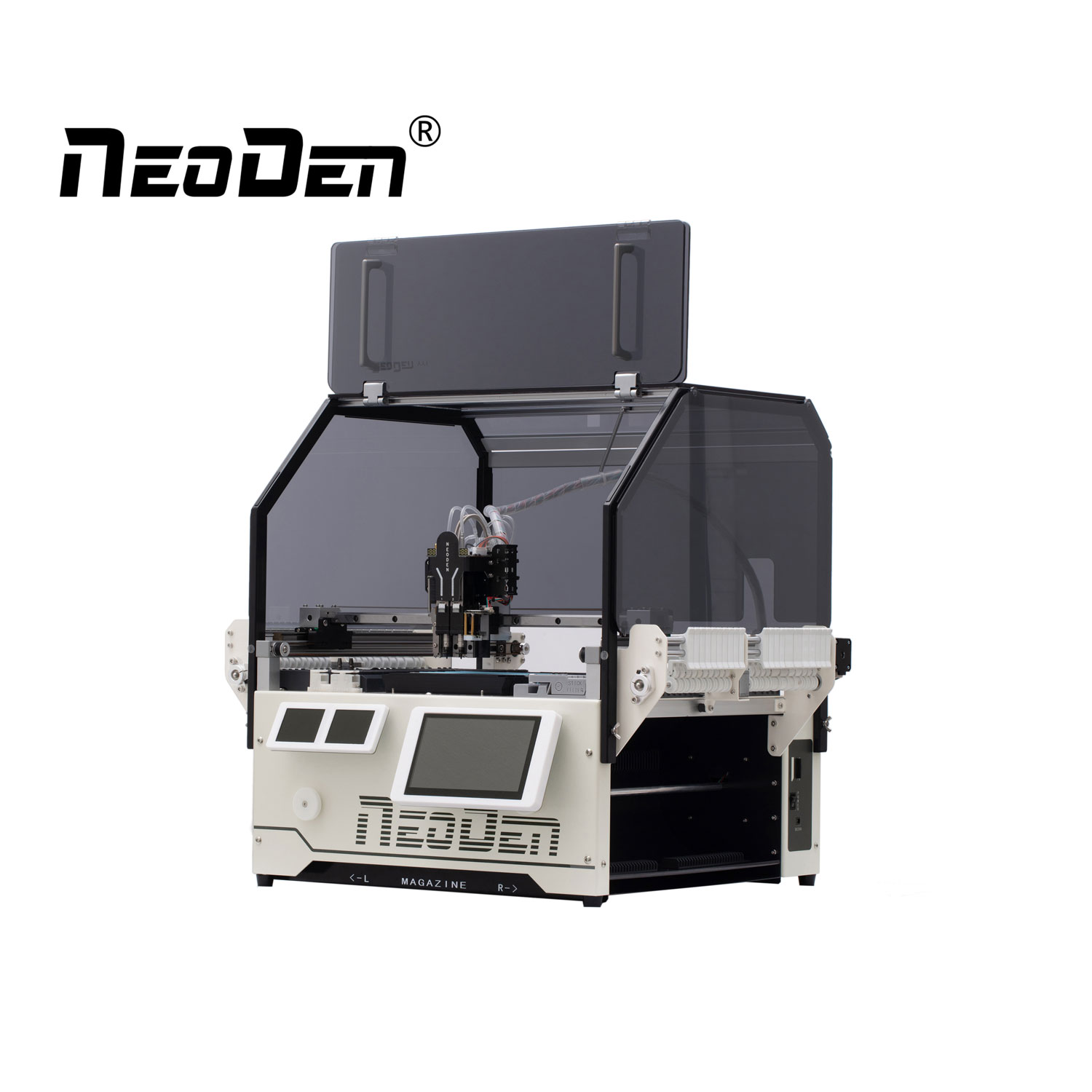

NeoDen YY1 Pick and Place Machine
NeoDen YY1 Pick and Place Machine
“Product Information”
| Product name | NeoDen YY1 pick and place machine |
| Machine Style |
Single Gantry With 2 Heads |
|
Placement Rate |
Vision On: 3000CPH |
| Vision Off: 4000CPH | |
|
Feeder Capacity |
Tape Feeder: 52 (all 8mm) |
|
Stick Feeder: 4 |
|
|
Flexible Feeder: 28 |
|
|
Bulk Feeder: 19 |
|
|
Nozzle Change Capacity |
3 Nozzles |
|
Component Range |
Smallest Size: 0201 |
|
Largest Size: 18*18mm |
|
| Max Height: 12mm | |
|
Rotation |
±180° |
|
External Dimensions (mm) |
Machine Size: 643(L)x530(W)x601(H) |
| Packing Size: 700(L)x580(W)x585(H) (wooden box) |
Features
1. Automatic nozzle changer help realizing nozzles changed flexibly.
2. Independent high-definition & high-speed dual vision recognition systems,as well as dual cameras for real-time display the working status. allows fast programming on the machine, friendly interface & easy operation.
3. Works in a near-perfect silent mode, making it a green and pollution-free pick and place machine.
4. Equipped with a vacuum detection function,can set standard vacuum detection values on placement head flexibly,all information can be displayed visually on the placement head.

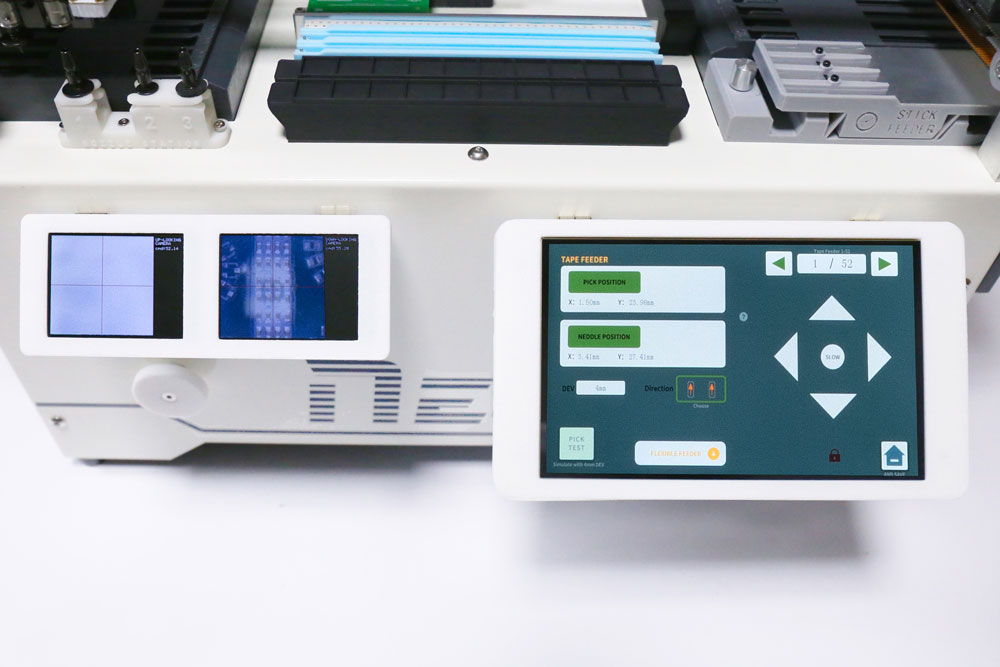

5. Comes with a high-definition capacitive touch screen, which can be adjusted up and down to meet the needs of different viewing angles and enhance the user experiences.
Details
“Product Display”

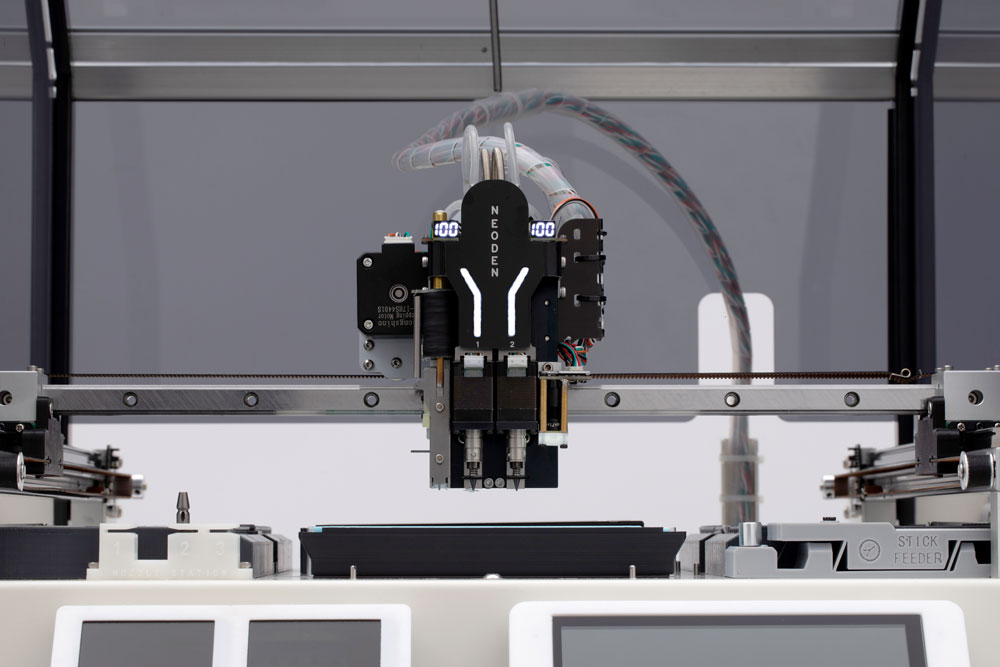

Pick and Place Machine Mounting Head

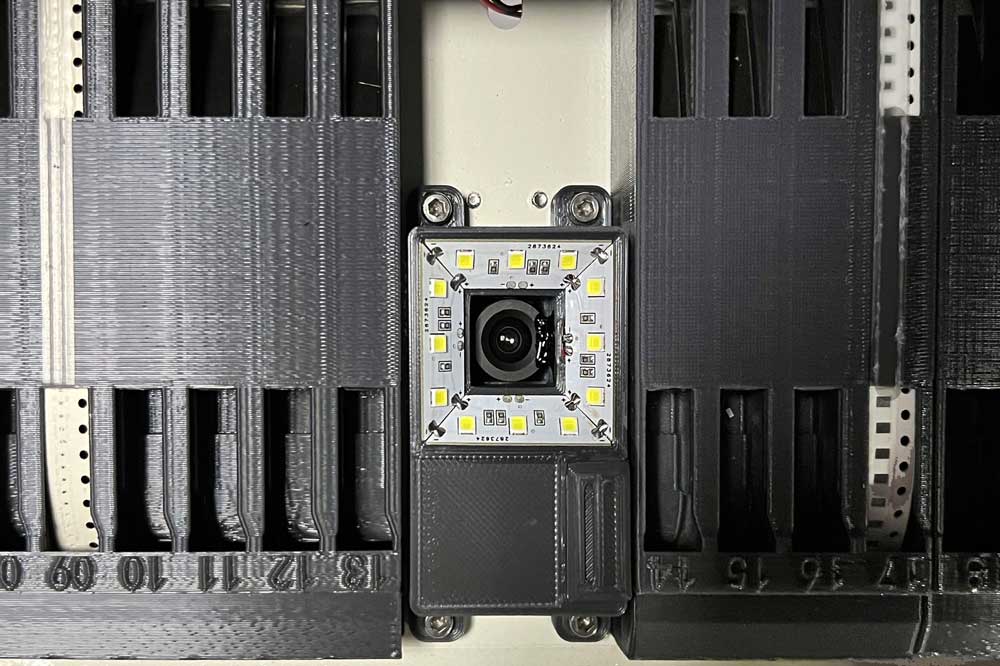

Double mark cameras to reach at extreme end feeders for better calibration.
Auto nozzle changer
It has 3 slots for nozzles replacement, which realizes maximum optimum of nozzles and achieve higher continuity of production.
Brand new patented peeling gadget
It’s simple but functional, it’s easy to install and flexible to remove. Compared with the peelers of TM240A, it doesn’t need to collect wasted film. Compared with the peelers of 3V, it solve the issue of unstability and offset issue.
About Us
Factory
Quick facts about NeoDen
- Established in 2010, 200+ employees, 8000+ Sq.m. factory.
- NeoDen products: Smart series PNP machine, NeoDen K1830, NeoDen4, NeoDen3V, NeoDen7, NeoDen6, TM220A, TM240A, TM245P, reflow oven IN6, IN12, Solder paste printer FP2636, PM3040.
- Successful 10000+ customers across the globe.
- 30+ Global Agents covered in Asia, Europe, America, Oceania and Africa.
- R&D Center: 3 R&D departments with 25+ professional R&D engineers.
- Listed with CE and got 50+ patents.
- 30+ quality control and technical support engineers, 15+ senior international sales, timely customer responding within 8 hours, professional solutions providing within 24 hours.
