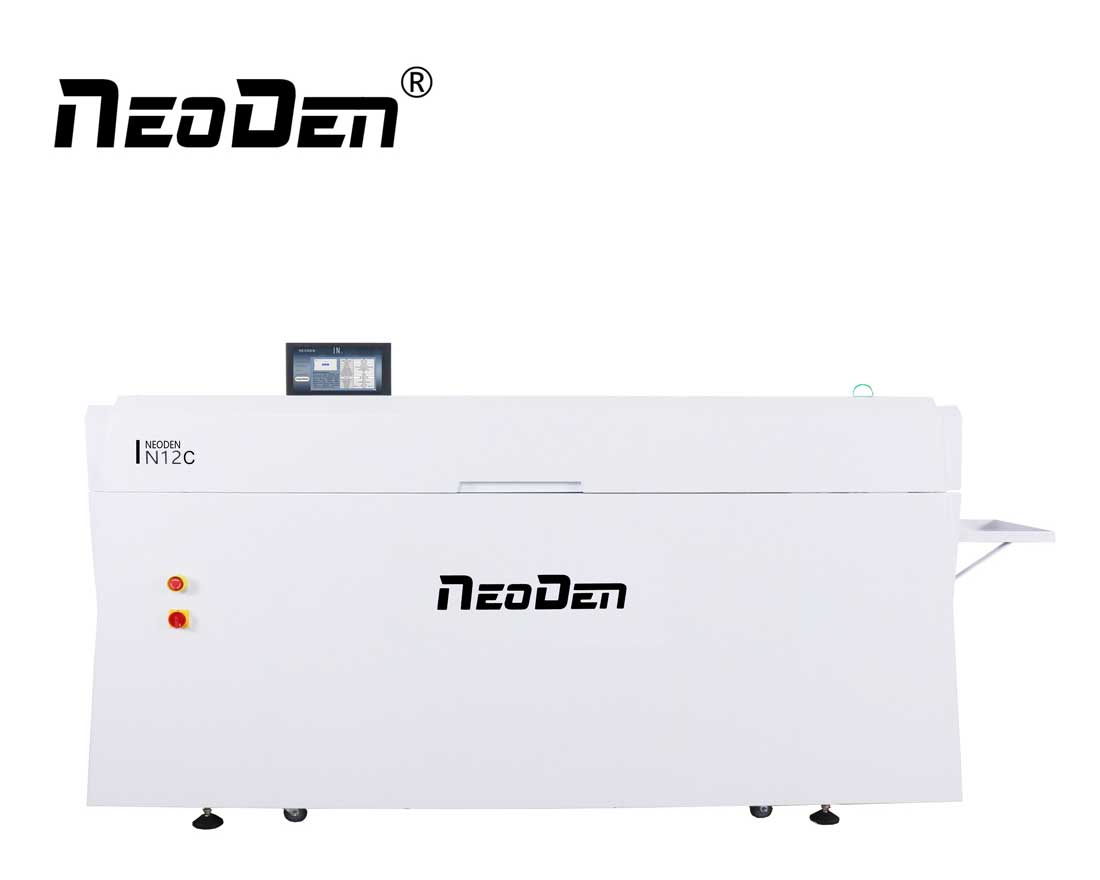

NeoDen IN12C SMT Reflow Oven
This reflow solder adopts the exclusive patented design of "even temperature heating plate" design, with excellent soldering performance.
NeoDen IN12C SMT Reflow Oven
“Product Information”
| Model | NeoDen IN12C |
| Conveyor Type | Rail |
|

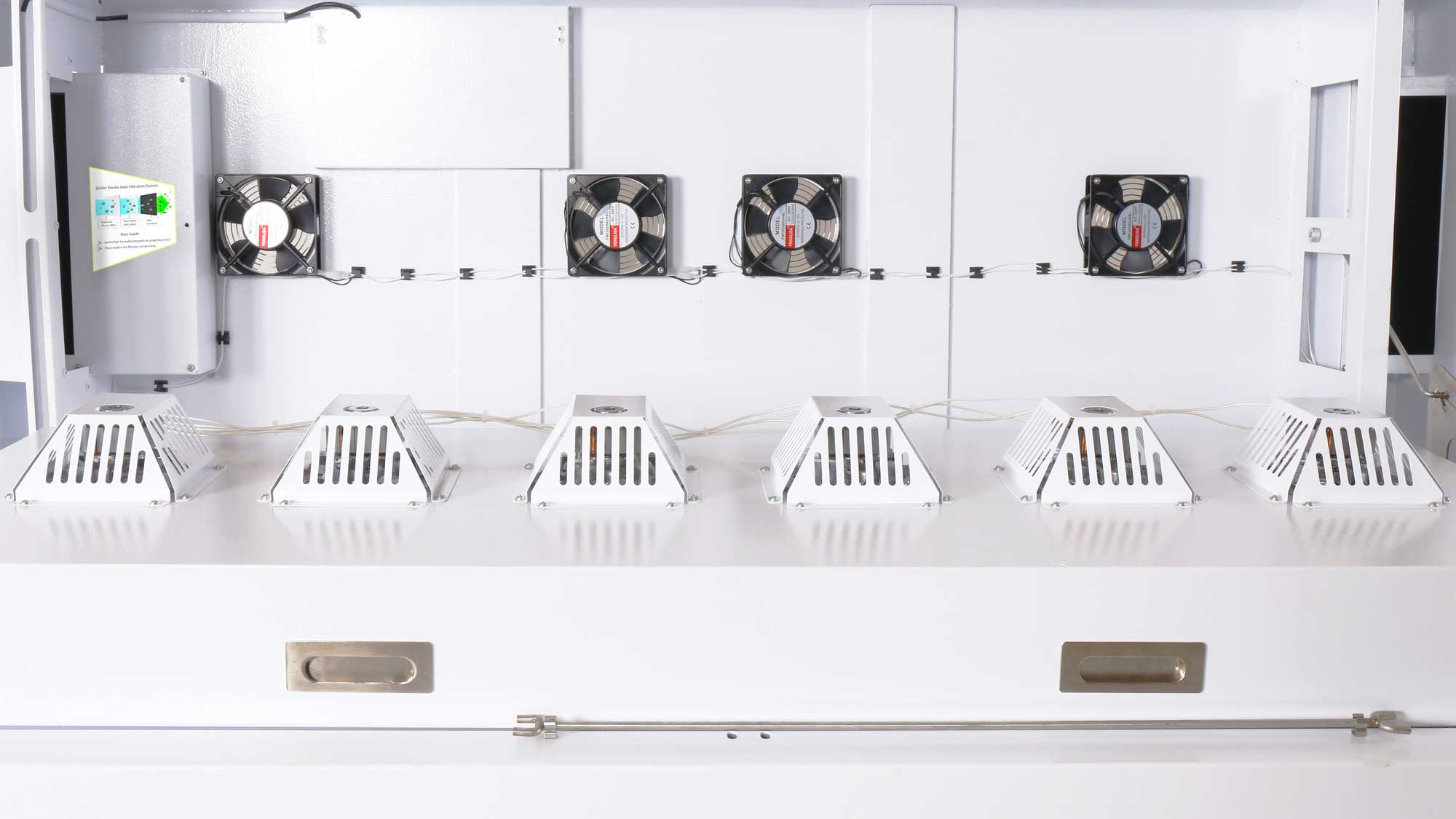

Heating Zone Qty |
Upper 6/Down 6 |
|
Cooling Zone Qty |
Upper 4 fans |
|
Rail Speed |
5-60cm/min |
|
Maximum Height |
Upper 30mm Down 22mm |
|
Temperature Range |
Room temperature ~300 celsius |
|
Preheating Time |
~20-30mins |
|
Maximum PCB Width |
300mm |
|
Operation Direction |
Left to right |
|
Peak power |
~4.8KW |
|
Work power |
~2.2KW |
|
Power Supply |
220V |
|
Dimension |
L2300*W650*H1280mm |
|
Net Weight |
300kgs |
Features
1. Built-in welding fume filtration system, effective filtration of harmful gases, beautiful appearance and environmental protection, more in line with the use of high-end environment.
2. The control system has the characteristics of high integration, timely response, low failure rate, easy maintenance, etc.
3. Hot air convection, excellent welding performance.
4. Intelligent control, high-sensitivity temperature sensor, effective temperature stabilization.
5. Can store 40 working files.
6. All temperature zones and cold air zone wind speed adjustable, easily cope with a variety of welding needs.
-
删除模板
-
向上插入行向下插入行
Details
“Product Display”

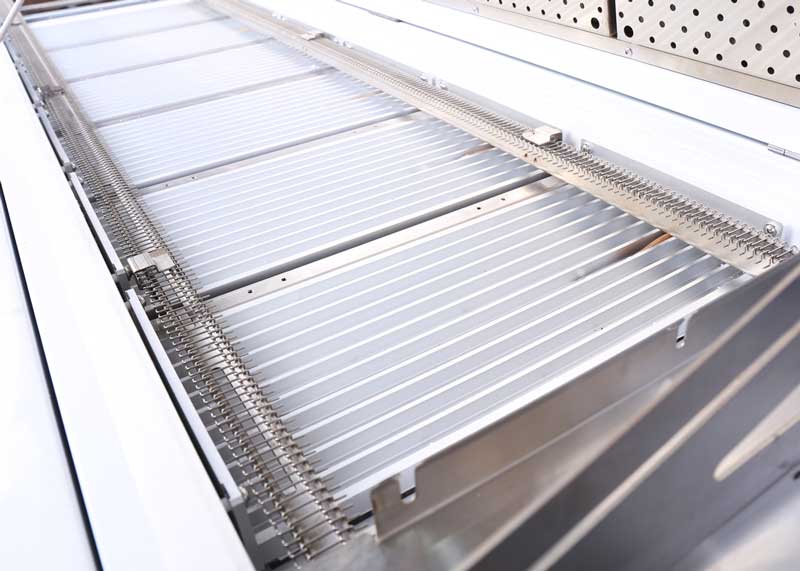

Automatic Orbital SMT Reflow Oven

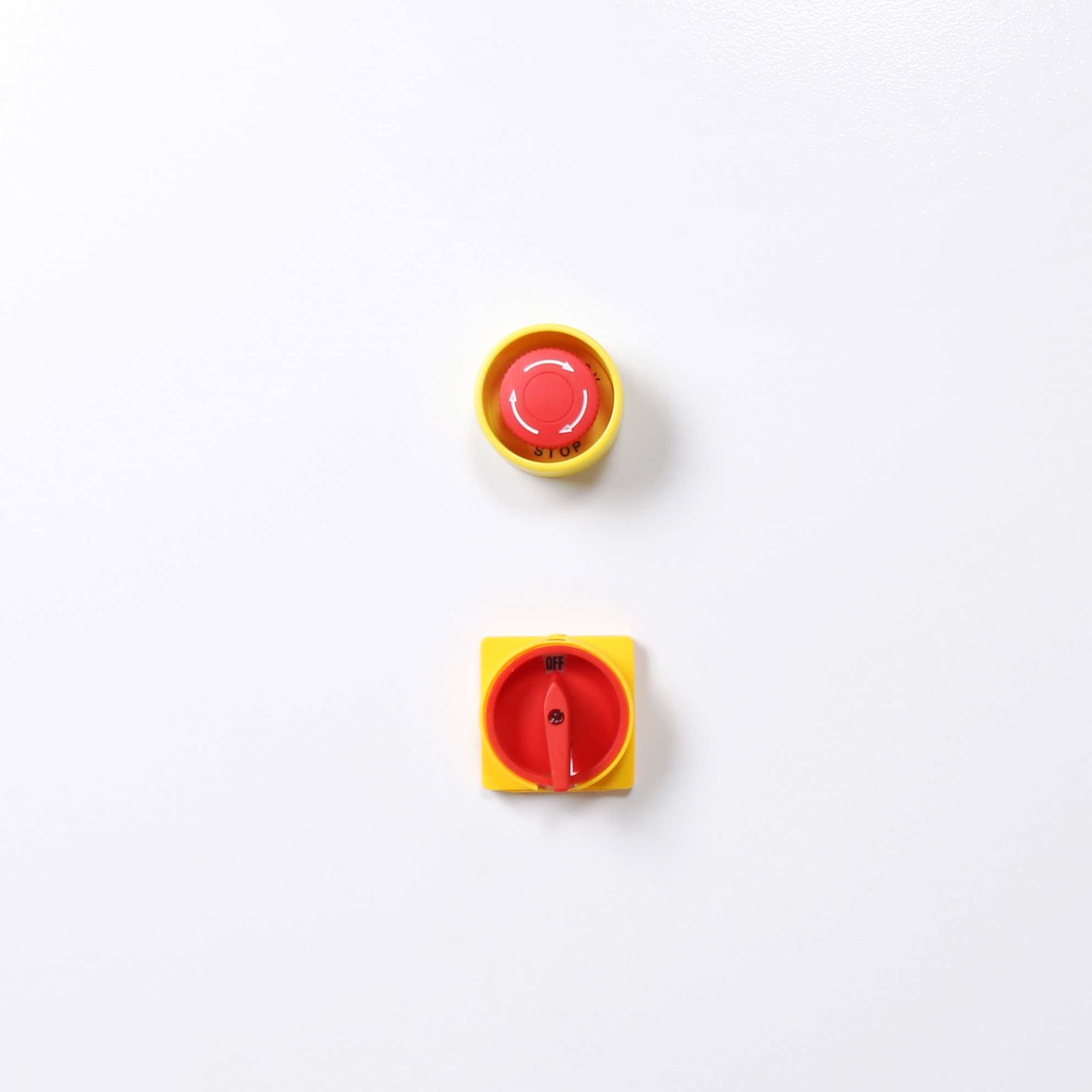

Emergency & Power On/Off Button

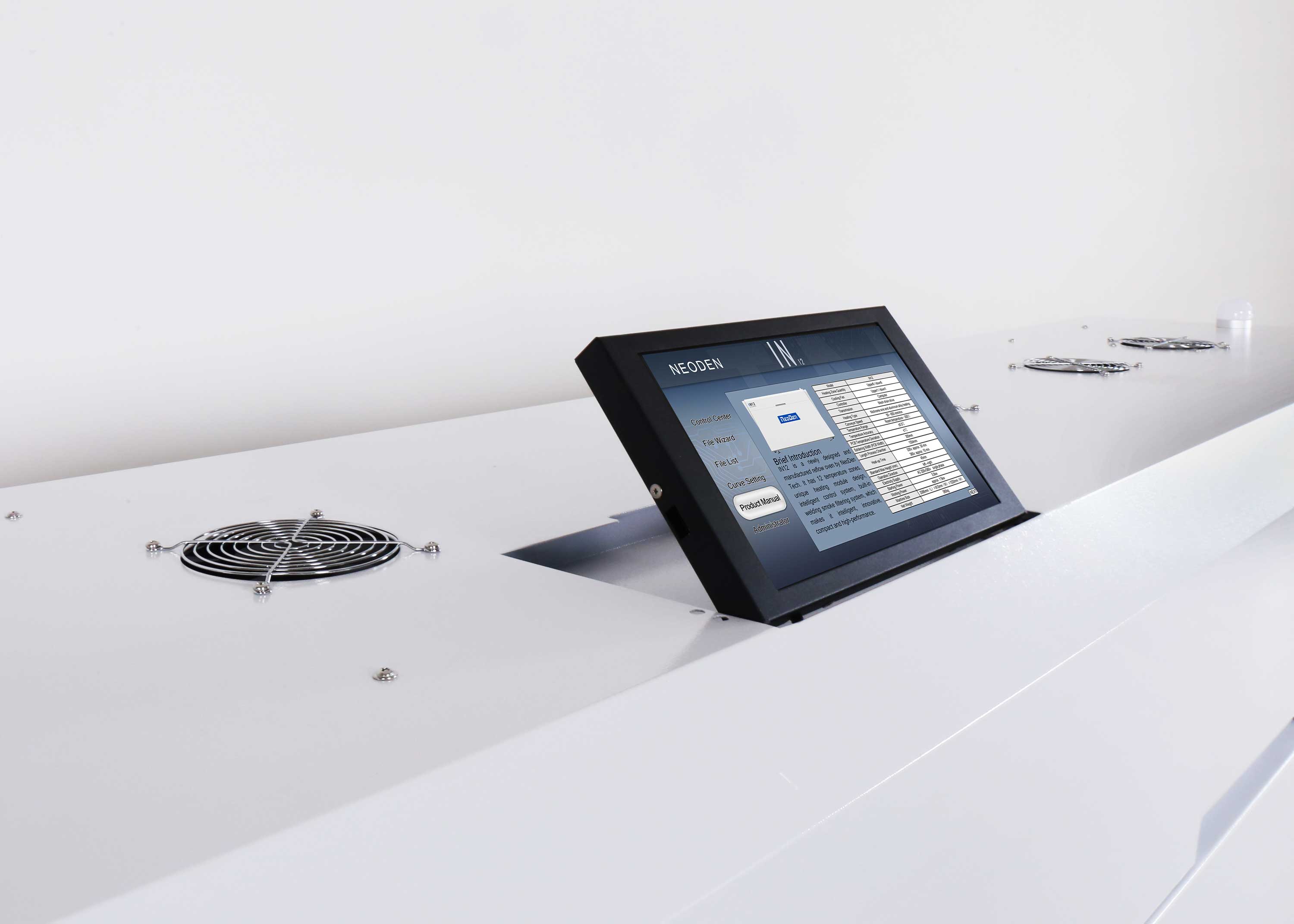

SMT reflow oven concealed screen design is convenient for transportation, easy to use, beautiful and generous.

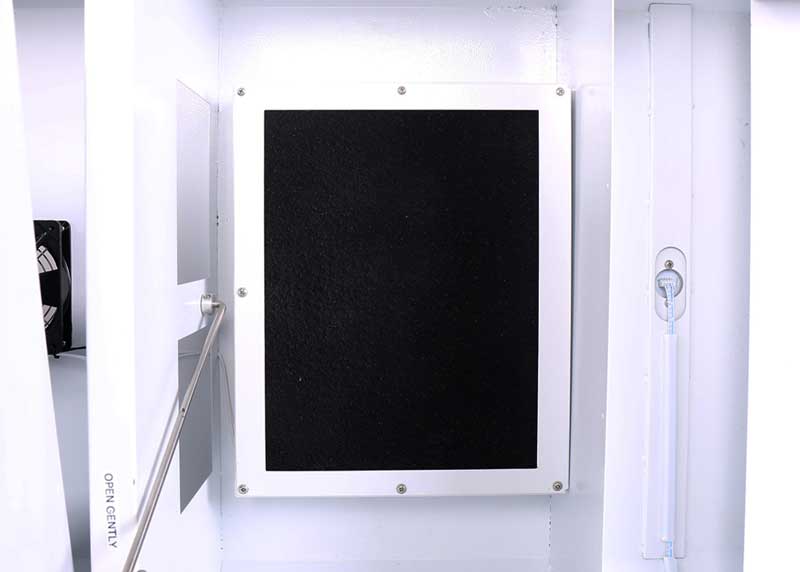

through the special airflow simulation software test optimized welding fume filtration system, can achieve the filtration of harmful gases at the same time to ensure that the equipment shell to maintain room temperature, reduce heat loss and reduce power consumption.
