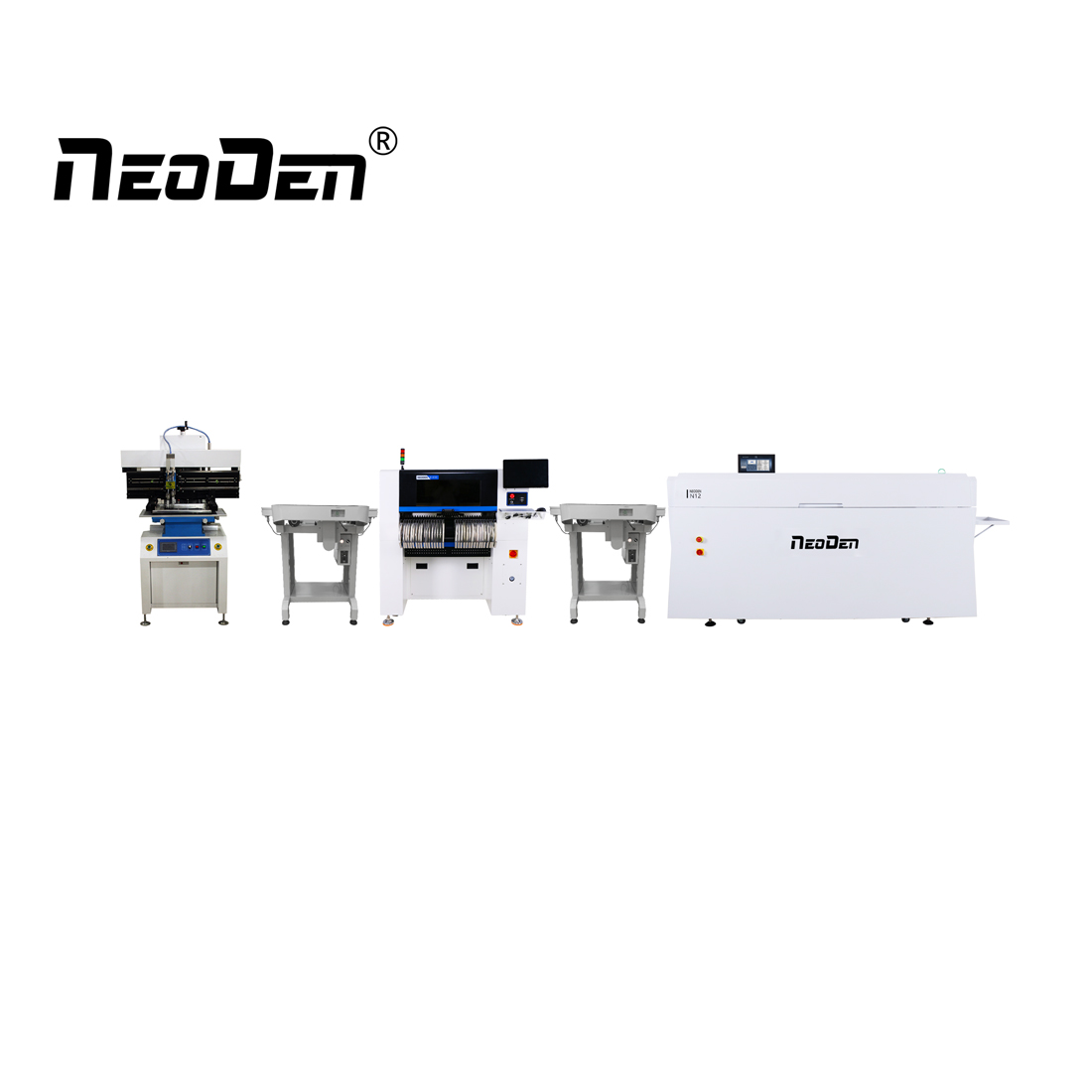

NeoDen High Speed SMT Production Line
High Speed PCB assembly line with 8 heads PnP machine, can satisfy batch of PCB assembly.
NeoDen YS350
“Product Information”
| Product Name | NeoDen YS350 Semi Automatic Solder Printer |
|
PCB size (Max) |
400*240mm |
|
Printing area |
500*320mm |
|
Frame size |
L 550-650 mm * W 370-470 mm |
|
Printing Accuracy |
±0.2mm |
|
PCB thickness |
0.2-2.0mm |
|
Air source |
4-6kg/c㎡ |
|
Power supply |
AC220V 50HZ / AC110V 60HZ |
|
Dimension |
L800*W700*H1700 mm |
|
Packing size |
1050*900*1850 mm |
|
Net weight |
230Kg |
|
Gross weight |
280Kg |
1. Control System
Microcomputer Control
Touch Screen Display
Menu User Interface
2. Touch Screen Interface
Time Display Function
Automatic Counting Function of Printing Times
3. Stencil
Similar to full automatic printing machine , the stencil will rise slowly within 2 seconds to demould then quickly rise to leave the PCB, which avoids the wire drawing occurring in the demould and saves time and improves production efficiency.
NeoDen K1830
“Product Information”
| Product Name | NeoDen K1830 pick and place machine |
|
Nozzle Q'ty |
8 |
|
Reel Tape Feeder Q'ty(Max) |
66 (Electric / Pneumatic) |
|
IC Tray Feeder Q'ty |
10 (In Succession) |
|
Max PCB size |
540*300mm (In Single Step) |
|
Max Placement Speed |
16,000CPH |
|
Voltage |
220V/50HZ & 110V/60HZ |
|
Smallest Component Size |
0201(Electric Feeder Available) |
|
Machine Dimensions |
1288×1062×1291mm(Without Tri-color Light) |
|
Net Weight |
280Kg |
|
Gross Weight |
360Kg |
1. 8 Synchronized Nozzles which ensure a repeatable placement accuracy with high speed.
2. Machine runs on highly stable and secure Linux operating system.
3. Double mark cameras to reach at extreme end feeders for better calibration.
4. High resolution and high speed component camera system improves the overall speed of the machine.
NeoDen IN12
“Product Information”
| Product Name | NeoDen IN12 Reflow Oven |
|
Heating Zone Quantity |
Upper6 / Down6 |
|
Cooling Fan |
Upper4 |
|
Controller |
VGUS Microcomputer |
|
Transmission |
Mesh Chain Drive |
|
Heating Type |
Nichrome Wire & Aluminum Alloy Heating |
|
Conveyor Speed |
50～600 mm/min |
|
Temperature Range |
Room temperature～300℃ |
|
Temperature Accuracy |
1℃ |
|
PCB Temperature Deviation |
±2℃ |
|
Max Soldering Width (PCB Width) |
350mm |
|
Length Process Chamber |
1354mm |
|
Heat-up Time |
30 min |
|
Max Soldering Height |
35mm (includes PCB thickness) |
|
Operation Direction |
left→right |
|
Electricity Supply |
AC 220v/single phase |
|
Starting Power |
2.4kw～4.8kw (adjustable) |
|
Machine Size |
L2300mm×W650mm×H1280mm |
|
Net Weight |
300KGS |
Detail
NeoDen IN12 reflow oven is a newly designed and manufactured reflow oven by NeoDen Tech.
It has 12 temperature zones, unique heating module design, intelligent control system, built-in welding smoke filtering system, which makes it intelligent, innovative, compact and high-performance.
Conveyor
“Product Information”
|
Power supply |
Single Phase 220V 50/60HZ 100W |
|
|
Conveyor Length |
80 cm |
|
|
Conveying Belt |
ESD belt |
|
|
Conveying speed |
0.5 to 400mm/min |
|
|
Specification |
|
|
|
|
|
|
|
Packing Size |
880*720*310mm |
|
|
PCB available width |
30-300mm |
|
|
PCB available length |
50-320mm |
|
|
G.W. |
49kg |
|
Features
1. Precise adjustment of width
2. Smooth running, PCB won`t be stuck.
3. Speed adjustable
