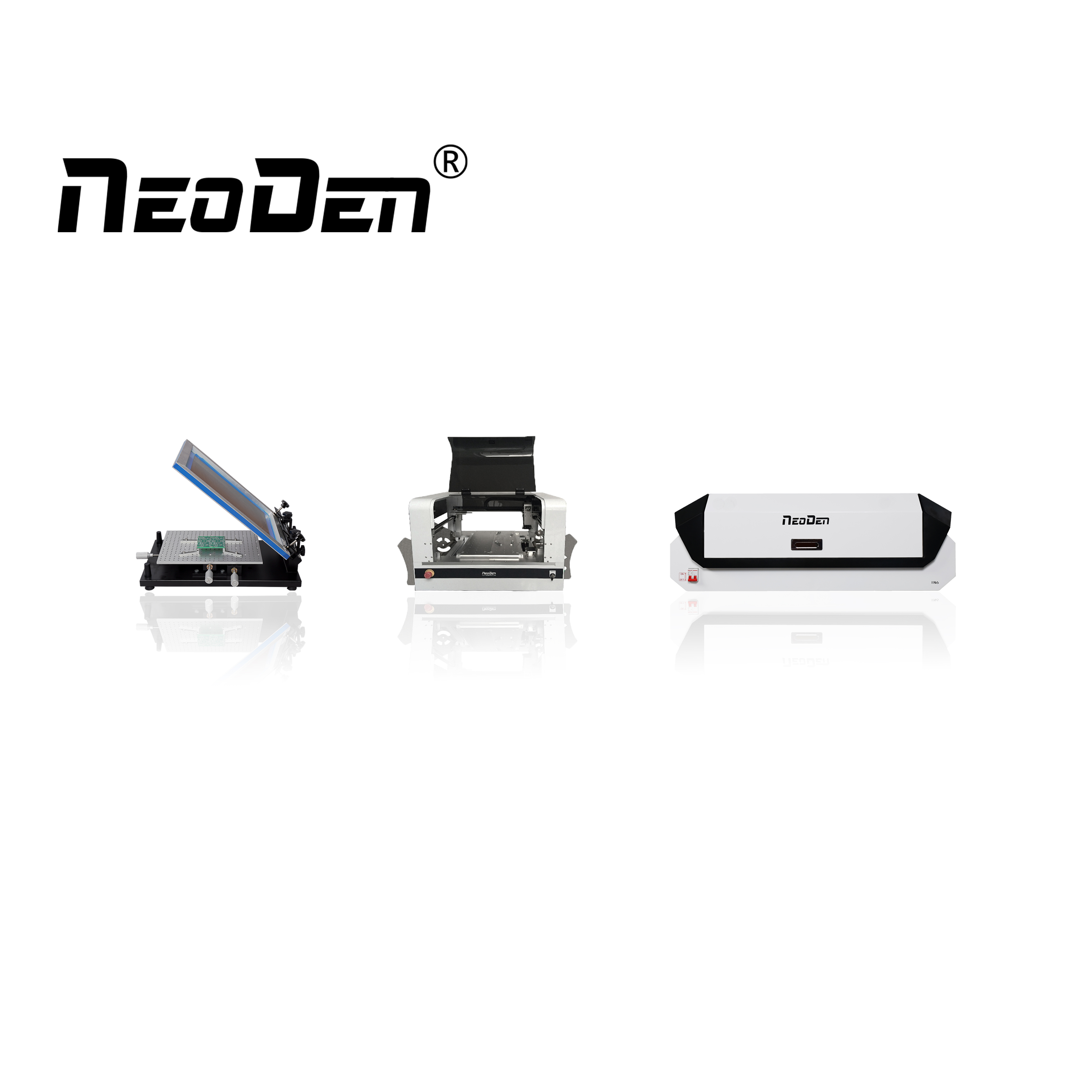

NeoDen Prototyp Production Line
NeoDen FP2636
“Product Information”
| Product Name | NeoDen FP2636 Manual Stencil Printer |
|
Dimensions |
660×470×245 mm |
|
Platform height |
190 mm |
|
Max PCB Size |
260×360 mm |
|
Printing speed |
Labor control |
|
PCB Thickness |
0~20 mm |
|
Repeatability |
±0.01 mm |
|
Positioning mode |
Outside/Reference hole |
|
Fine Adjustment Range |
Z-axis ±15mm X-axis ±15mm Y-axis ±15mm |
|
Net Weight |
12Kg |
-
Rulers of stencil fixed frame -
Convenience operating -
Adjustment handle
1. T screw rod regulating handle, ensure adjustment accuracy and levelness of PCB fixed plane, minimum lead pitch achieved 1mm.
2. Letter mark for each regulating handle, better and easier to operate.
3. Rulers of stencil fixed frame for reference lines, ensure the levelness between stencil and PCB.
4. Support for single sided as well as double sided PCB.
NeoDen 3V
“Product Information”
| Product Name | NeoDen 3V Pick and Place Machine | |
| Machine Style | Single gantry with 2 heads | |
| Alignment | Stage Vision | |
| Placement Rate | Vision on | 3,500CPH |
| Vision off | 5,000CPH | |
| Feeder Capacity | Tape feeder: 25 (all 8 mm) | |
| Vibration feeder: 5 | ||
| Tray feeder: 10 | ||
| Component Range | Smallest Size | 0402 (01005 inch) |
| Largest Size | TQFP100 (Lead Pitch 0.5mm) | |
| Max Height | 5mm | |
| Rotation | ±180° | |
| Placement Accuracy | ±0.02mm | |
| Board Dimension (Max) | 320*420mm | |
| Operation System | Windows XP-Nova | |
| Electricity Supply | 100V | 200V |
| Power | 160-200W | |
| External Dimensions | 820*650*410 mm | |
| Net Weight | 55Kgs | |
| Numbers of Pumps |
3 |
|
Details
1. Vision system. An up-looking camera identifies and calibrates the different components, and tremendously improves the accuracy of placement from 0402 to TQFP.
2. Integrated Controller. More stable performance and easier to do maintenance.
3. Mechanical correction for IC mounting.
4. Supports remote system upgrade, NeoDen will provide a life-long technical service and system upgrade.
NeoDen IN6
“Product Information”
| Product Name | NeoDen IN6 Reflow Oven |
|
Power requirement |
110/220VAC 1-phase |
|
Power max. |
2KW |
|
Heating zone quantity |
Upper3/Down3 |
|
Conveyor speed |
5 - 30 cm/min (2 - 12 inch/min) |
|
Standard Max Height |
30 mm |
|
Temperature control range |
Room temperature~ 300 degree celsius |
|
Temperature control accuracy |
±0.2 degree celsius |
|
Temperature distribution deviation |
±1 degree celsius |
|
Soldering width |
260 mm (10 inch) |
|
Length process chamber |
680 mm (26.8 inch) |
|
Heat-up time |
approx. 25 min |
|
Dimensions |
1020*507*350 mm |
|
Packing Size |
1120*620*560 mm |
|
N.W./ G.W |
49Kg/64Kg (without working table) |
Details
1. Full convection, excellent soldering performance.
2. Zones design, light and compact.
3. Smart control with high sensitivity temperature sensor, the temperature can be stabilized within + 0.2℃.
4. Japan NSK hot-air motor bearings and Swiss heating wire, durable and stable.
5. Approved by TUV CE, authoritative and reliable.
