NeoDen Prototyp Production Line

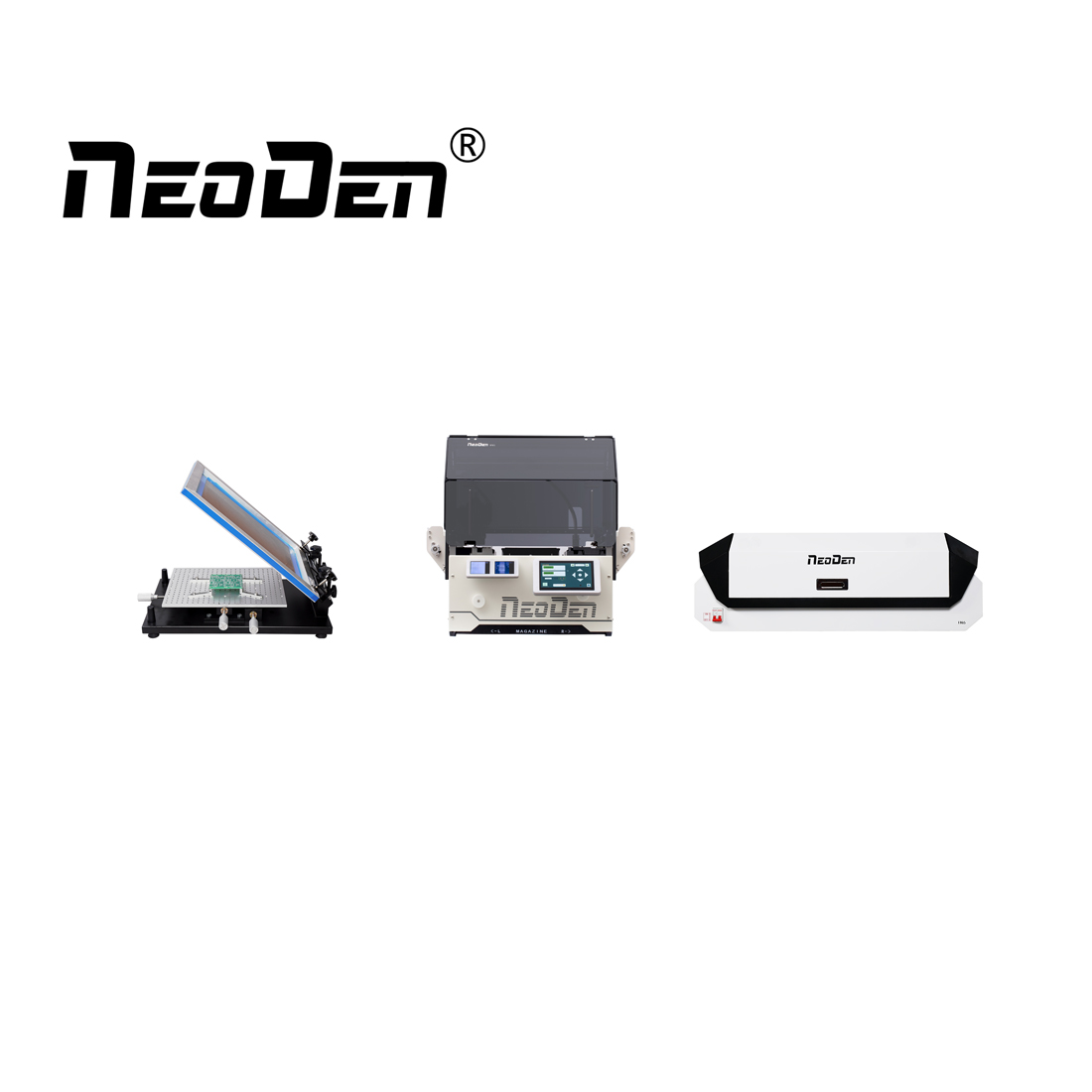

NeoDen FP2636 manual stencil printer, NeoDen YY1 2 heads pick and place machine, NeoDen IN6 6 zones reflow oven.

NeoDen FP2636



“Product Information”


Product Name  NeoDen FP2636 Manual Stencil Printer

Dimensions

 660×470×245 mm

Platform height

 190 mm

Max PCB Size

 260×360 mm

Printing speed

 Labor control

PCB Thickness

 0~20 mm

Repeatability

 ±0.01 mm

Positioning mode

 Outside/Reference hole

Fine Adjustment Range

 Z-axis ±15mm  X-axis ±15mm  Y-axis ±15mm

Net Weight

 12Kg
Details
  • Rulers of stencil fixed frame
  • Convenience operating
  • Adjustment handle

1. T screw rod regulating handle, ensure adjustment accuracy and levelness of PCB fixed plane, minimum lead pitch achieved 1mm.



2. Letter mark for each regulating handle, better and easier to operate.



3. Rulers of stencil fixed frame for reference lines, ensure the levelness between stencil and PCB.



4. Support for single sided as well as double sided PCB.



NeoDen YY1



“Product Information”



Product Name NeoDen YY1 Pick and Place Machine
Machine Style Single gantry with 2 heads
Alignment Stage Vision
Placement Rate Vision on 3,000CPH
Vision off 4,000CPH
Feeder Capacity Tape feeder: 52 (all 8 mm)
Stick feeder: 4
Flexible Feeder: 28
Bulk feeder: 19
Component Range Smallest Size 0201
Largest Size 18*18mm
Max Height 12mm
Rotation ±180°
Placement Accuracy ±0.02mm
Electricity Supply AC100V-240W
Net Weight 35.5Kgs
Nozzle Change Capacity

3



Details








1. Automatic nozzle changer help realizing nozzles changed flexibly.

2. Independent high-definition & high-speed dual vision recognition systems,as well as dual cameras for real-time display the working status.

3. Patent-protected & new needle module is specially designed based on the linear rail with high reliability and durability.

4. Small size with powerful magazines and newly designed tape feeders to support large tape reels configur ation flexibly,easy to install and r eplace tape r eels conveniently,to ensur e the most excellence solution among all of the entry level machines with lower budget but higher stability.



NeoDen IN6



“Product Information”



Product Name NeoDen IN6 Reflow Oven

Power requirement

110/220VAC 1-phase

Power max.

2KW

Heating zone quantity

Upper3/Down3

Conveyor speed

5 - 30 cm/min (2 - 12 inch/min)

Standard Max Height

30 mm

Temperature control range

Room temperature~

300 degree celsius

Temperature control accuracy

±0.2 degree celsius

Temperature distribution deviation

±1 degree celsius

Soldering width

260 mm (10 inch)

Length process chamber

680 mm (26.8 inch)

Heat-up time

approx. 25 min

Dimensions

1020*507*350 mm

Packing Size

1120*620*560 mm

N.W./ G.W

49Kg/64Kg (without working table)



Details











1. Full convection, excellent soldering performance.



2. Zones design, light and compact.



3. Smart control with high sensitivity temperature sensor, the temperature can be stabilized within + 0.2℃.



4. Japan NSK hot-air motor bearings and Swiss heating wire, durable and stable.



5. Approved by TUV CE, authoritative and reliable.
