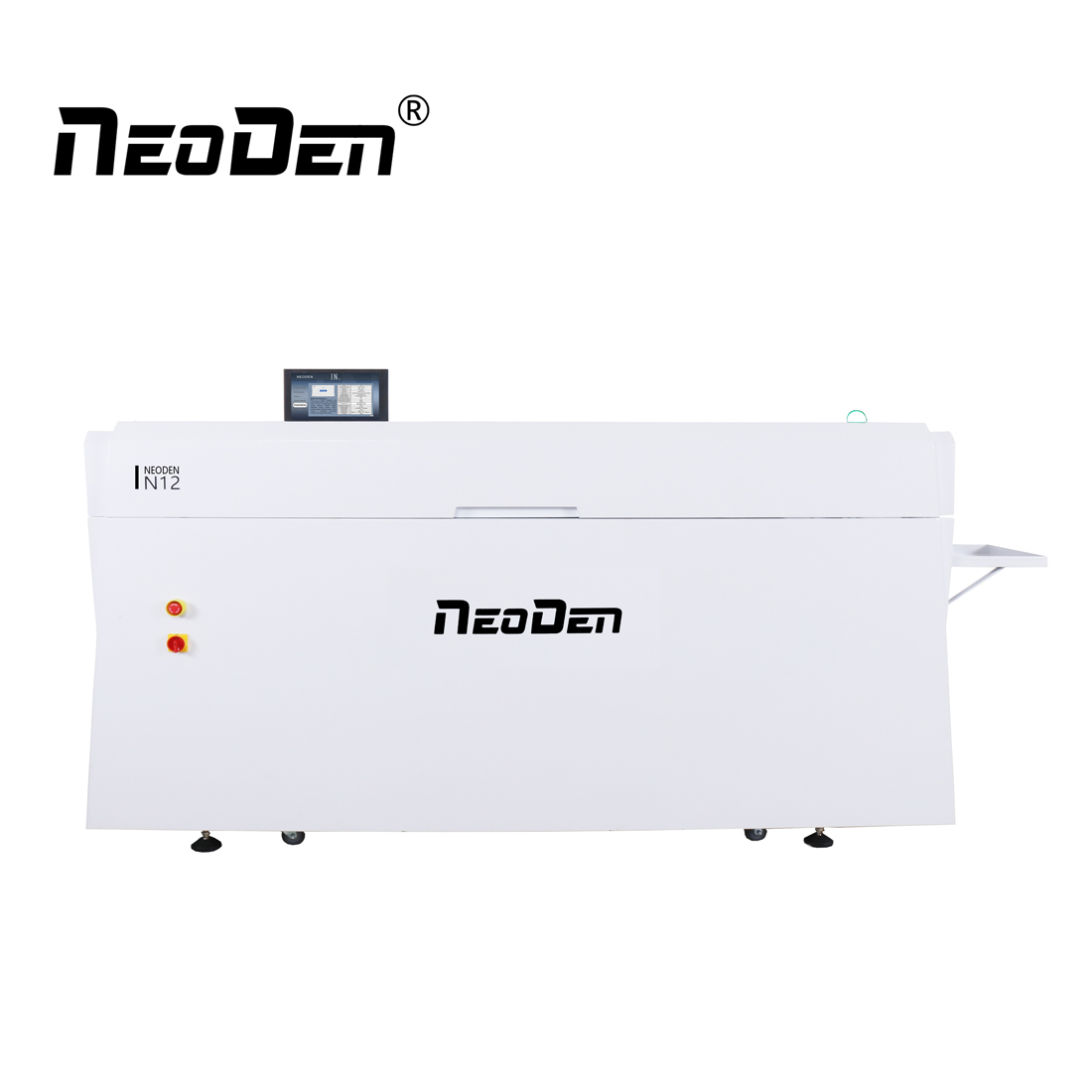

NeoDen IN12 Reflow Oven
NeoDen IN12 Reflow Oven
“Product Information”
| Model | NeoDen IN12 |
|
Heating Zone Qty |
Up 6/Down 6 |
|
Cooling Zone Qty |
Upper 4 fans |
|
Rail Speed |
50-600mm/min |
|
Temperature Range |
Room temperature ~300 celsius |
|
Temperature Accuracy |
1°C |
|
Maximum PCB Width |
350mm |
|
Operation Direction |
Left to right |
|
Starting power |
2.4~4.8KW (ajustable) |
|
Power Supply |
AC 220v/single phase |
|
Dimension |
L2300*W650*H1280mm |
|
Net Weight |
300kgs |
Features
IN12 is a newly designed and manufactured reflow oven by NeoDen Tech. It has 12 temperature zones, unique heating module design, intelligent control system, built-in welding smoke filtering system, which makes it intelligent, innovative, compact and high-performance.
1. High-performance aluminum alloy heating plate instead of heating pipe, both energy-saving and high-efficient, and transverse temperature deviation is significantly reduced compare to the similar reflow oven products in the market.
2. Heat insulation protection design, the casing temperature can be effectively controlled.
3. Smart control with high sensitivity temperature sensor, the temperature can be effectively stabilized.
4. The mesh sprocket made of high-precision profile technology and the unique support structure can effectively reduce the vibration of the PCB in the reflow zones, and easily cope with the welding of small size components such as 0201 and complex chips such as BGA/QFP/QFN.
5. Hidden screen design is convenient for transportation, easy to use.
Details
“Product Display”

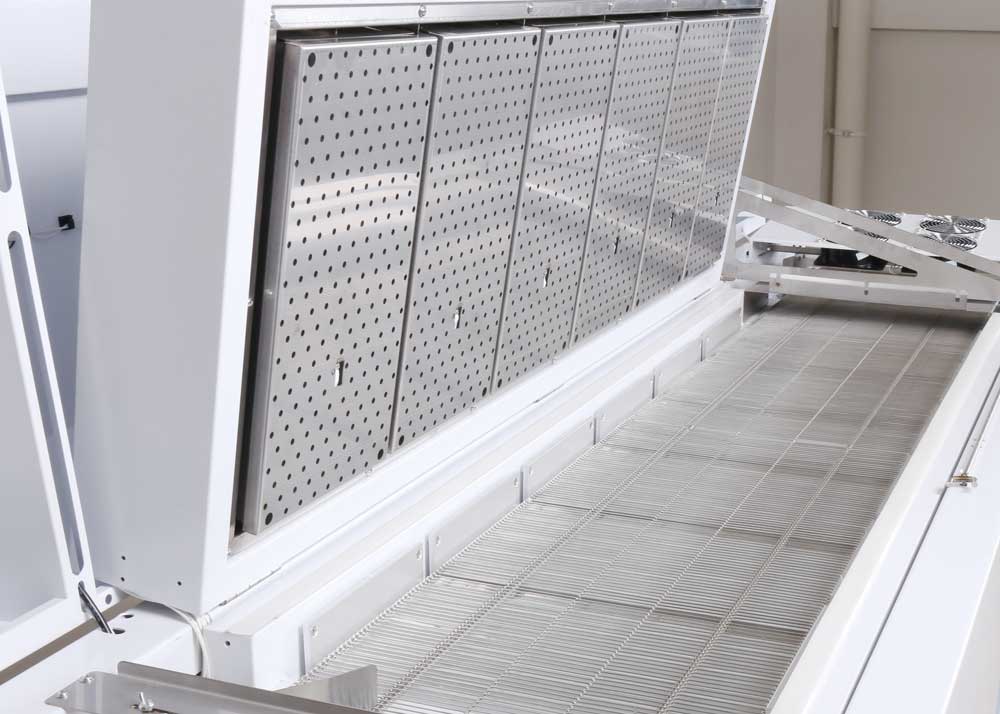

SMT Reflow Oven 12 Heating Zones

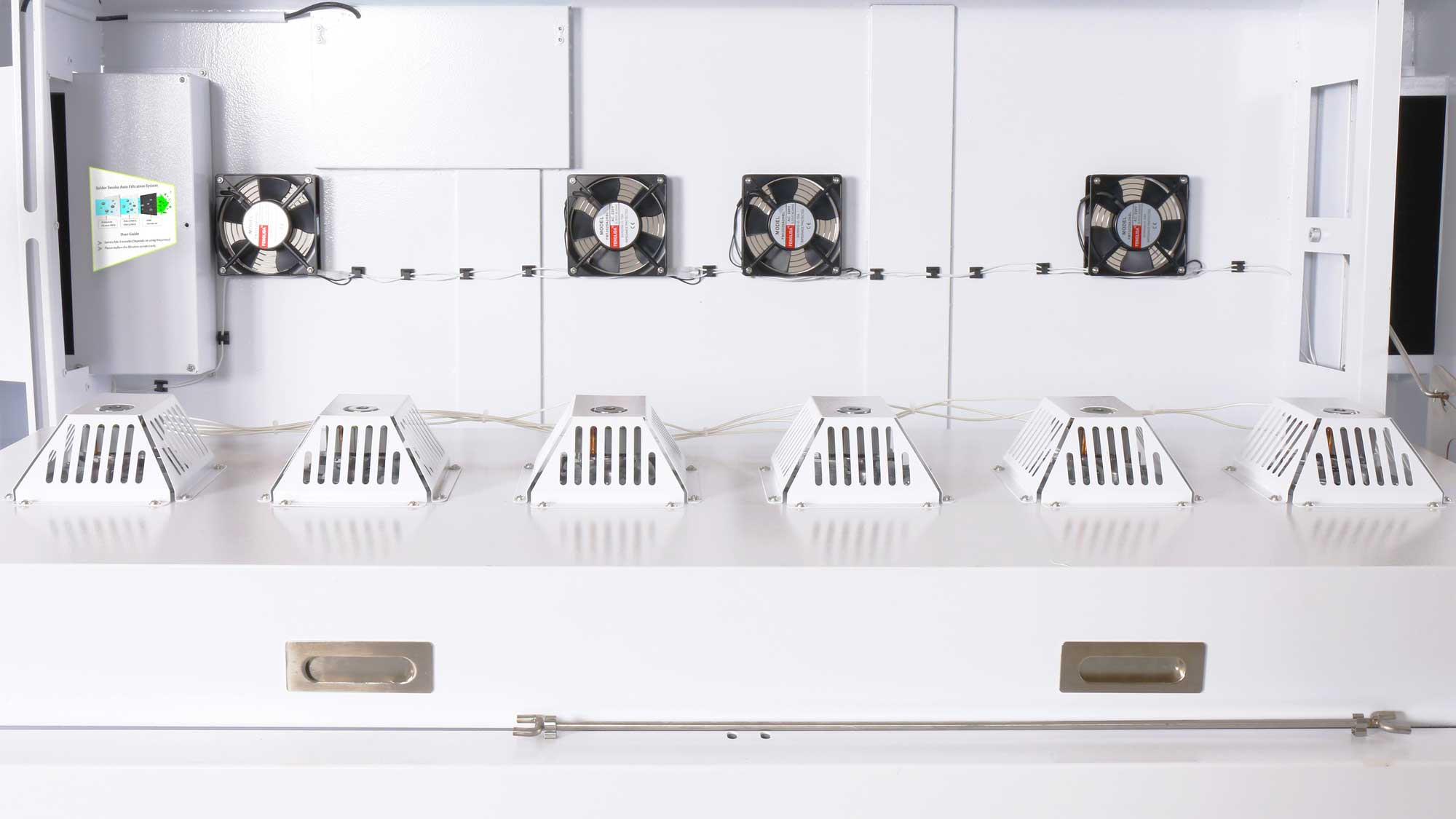

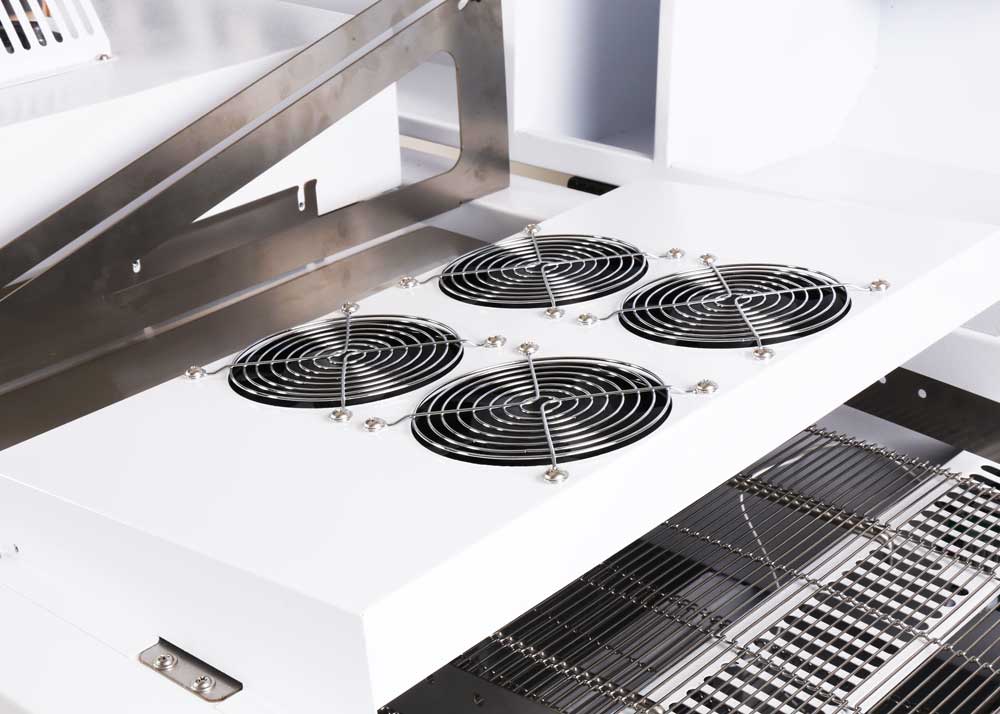

Cooling zone with independent circulating air design

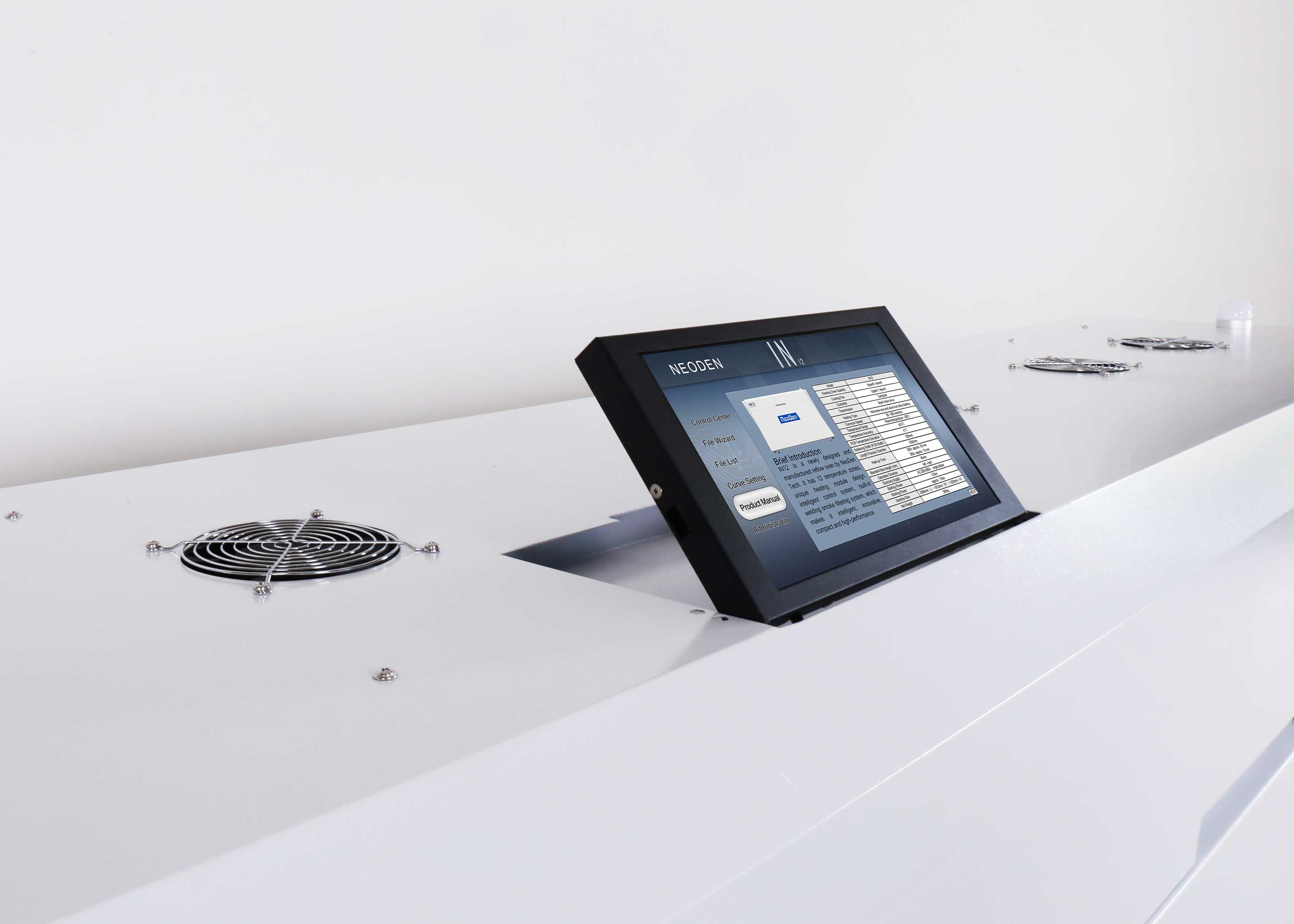

SMT reflow oven concealed screen design is convenient for transportation, easy to use, beautiful and generous.

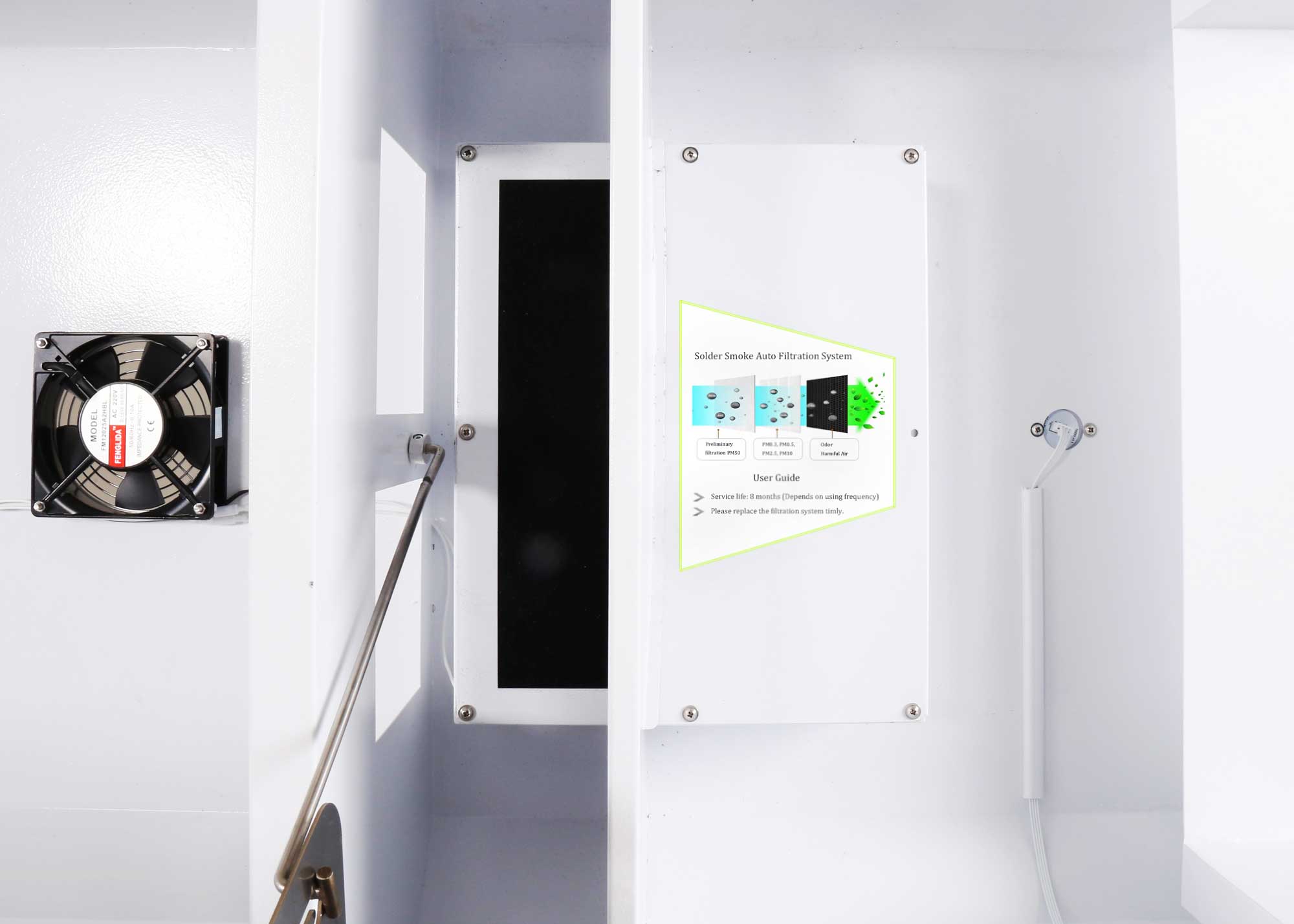

through the special airflow simulation software test optimized welding fume filtration system, can achieve the filtration of harmful gases at the same time to ensure that the equipment shell to maintain room temperature, reduce heat loss and reduce power consumption.
