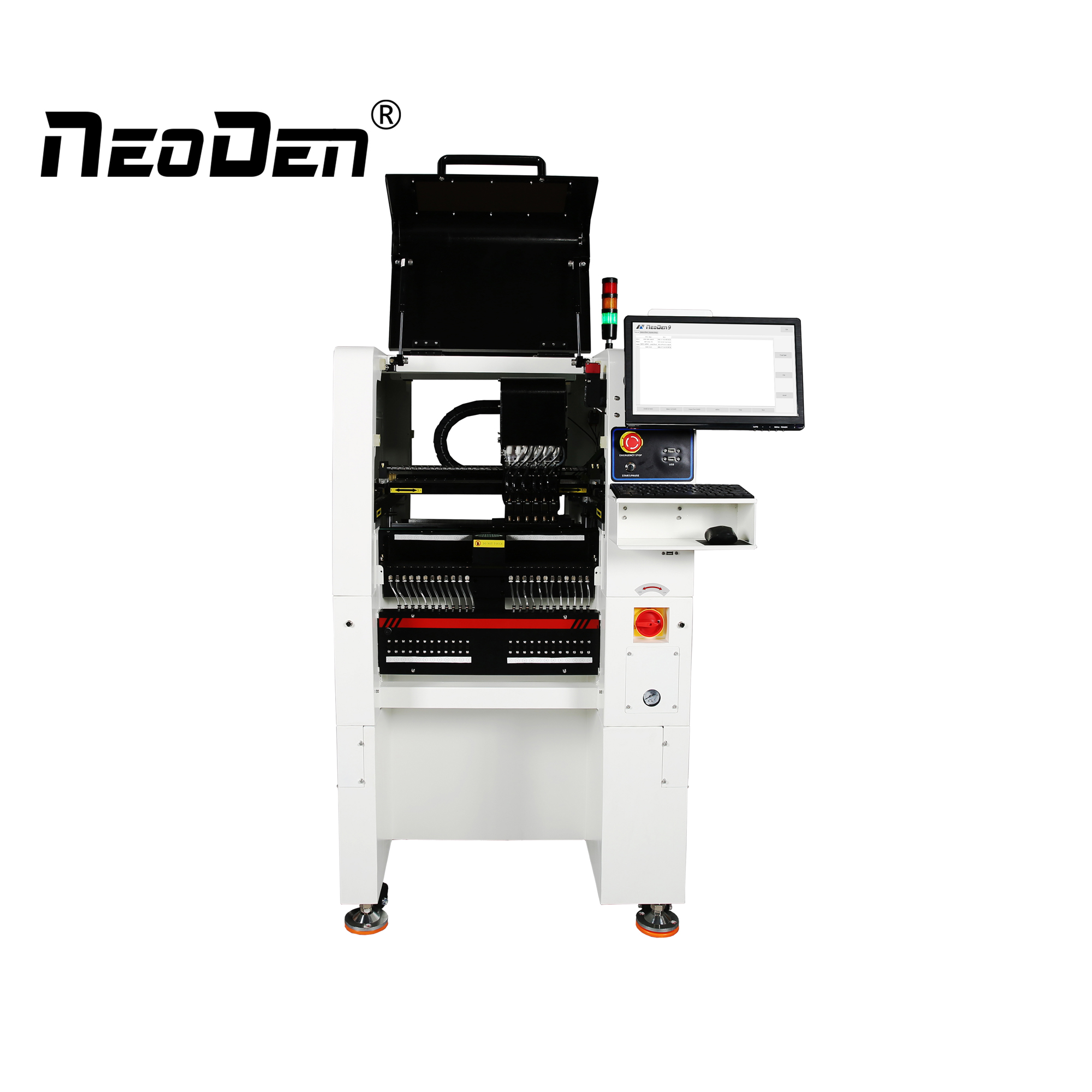

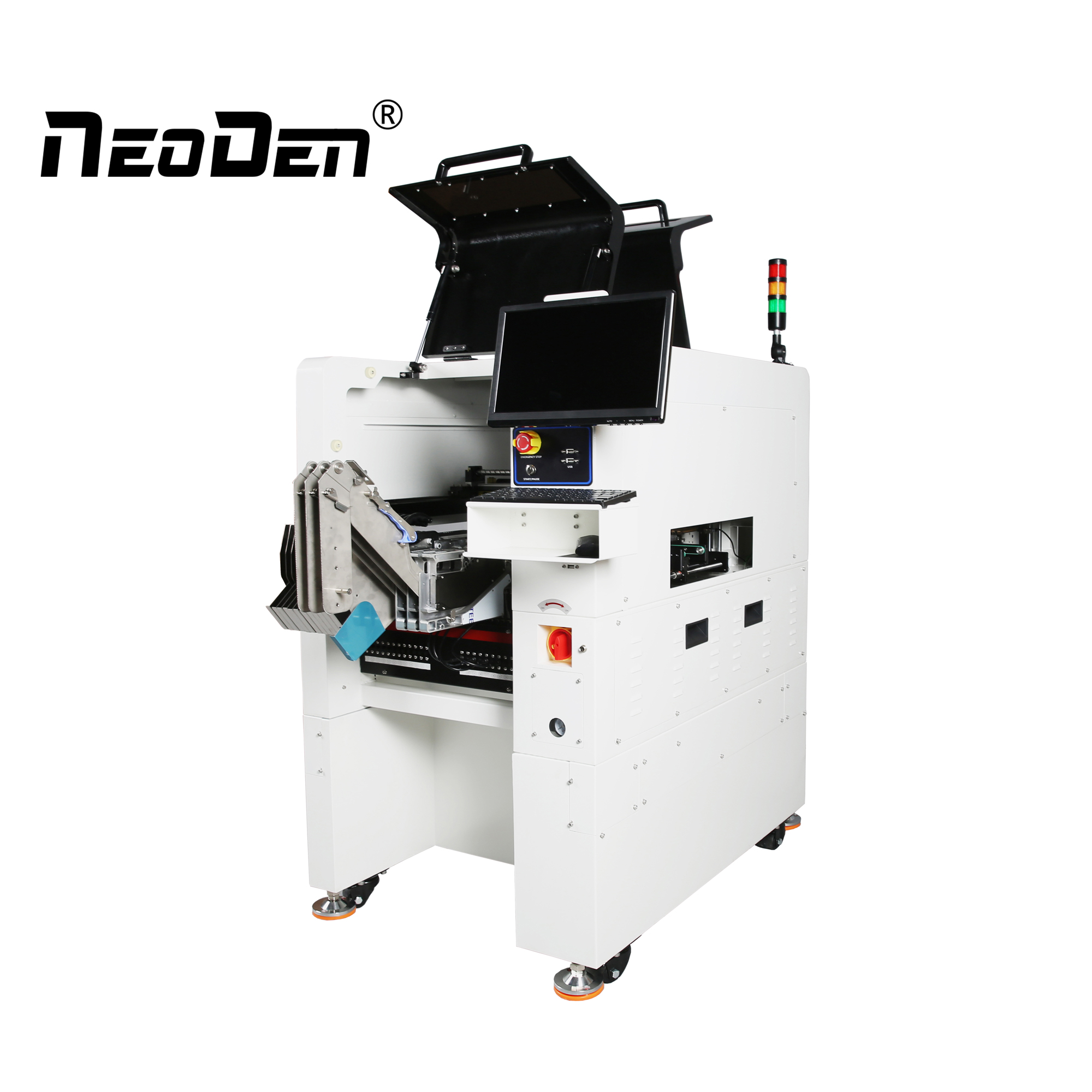

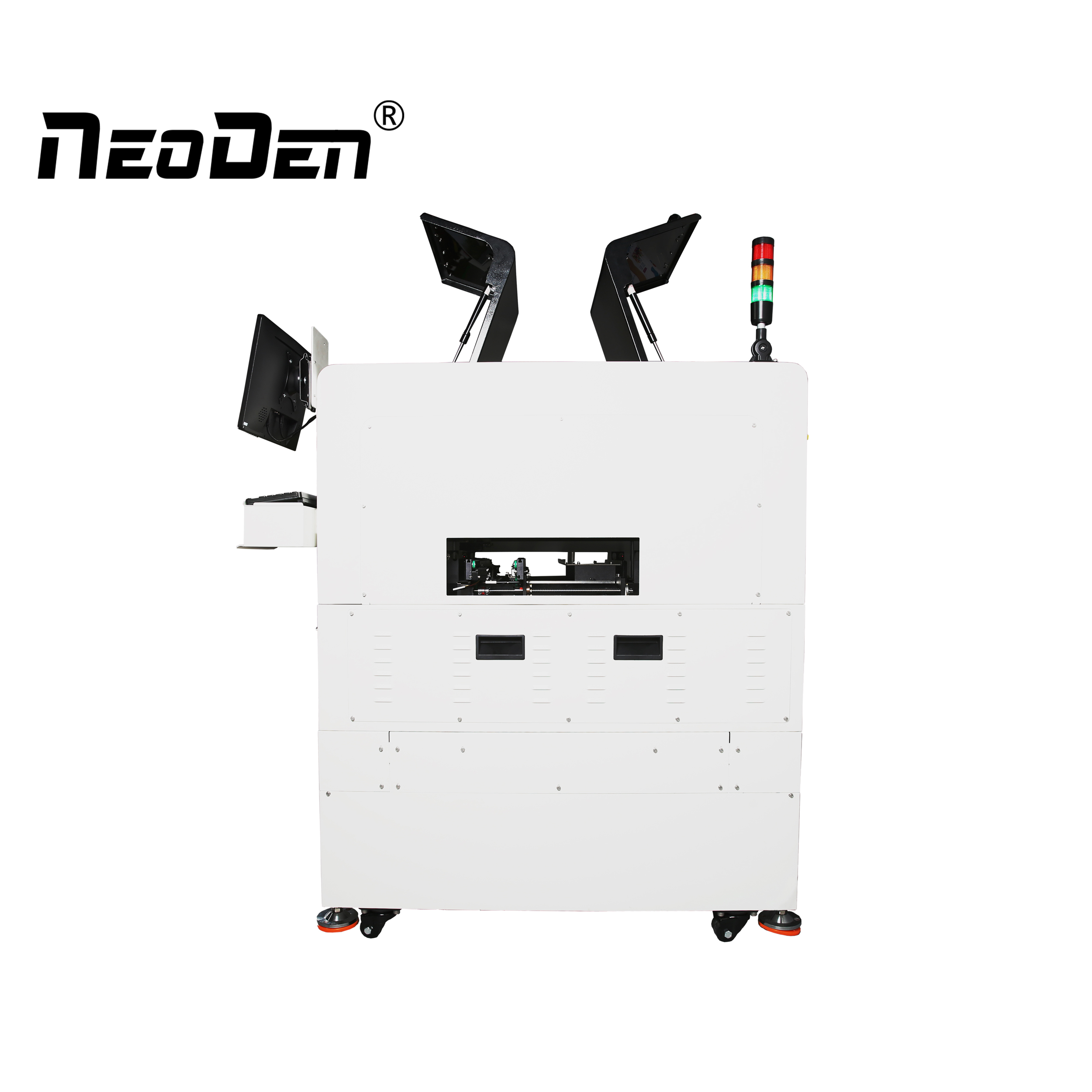

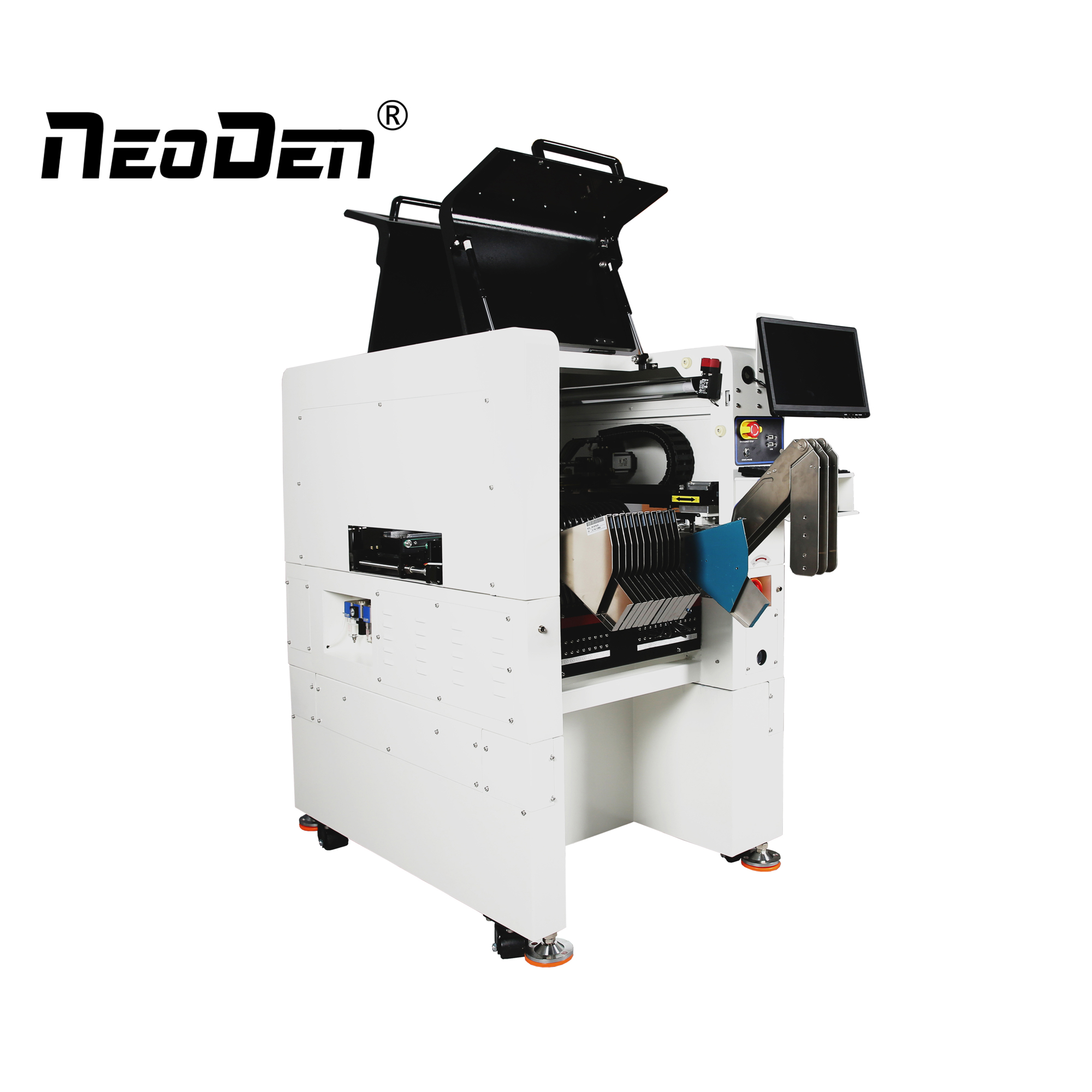

NeoDen9 Pick and Place Machine
NeoDen9 Pick and Place Machine
“Product Information”
| Model | NeoDen9 pick and place machine |
| Nozzle Q'ty | 6 |
| Number of Tape reel Feeders | 53 (Electric/Pneumatic) |
| Number of IC Tray | 20 |
| Placement Area | 460mm*300mm |
| MAX Mounting Height | 16mm |
| XY Drive motor | Panasonic A6 400W servo motor |
| Maximum Mounting Speed | 14000CPH |
| Average Mounting Speed | 9000CPH |
| Compressed Air | >0.6Mpa |
| Input Power | 220V/50HZ(110V/60HZ Alternative) |
| Net Weight | 1100KGS |
| Machine Dimensions | L1300mm*W1100mm*H1375mm |
Features
1. The average mounting speed can be reached at 9000CPH.
2. The max mounting speed can be reached at 14000CPH.
3. NeoDen independent Linux software, to ensure the flexible and expedient upgrading.
As well as easier operation and faster training.
2.1-Click optimization function:
A. Mounting sequences.
B. Quick calibration of the picking position.
Details
“Product Display”

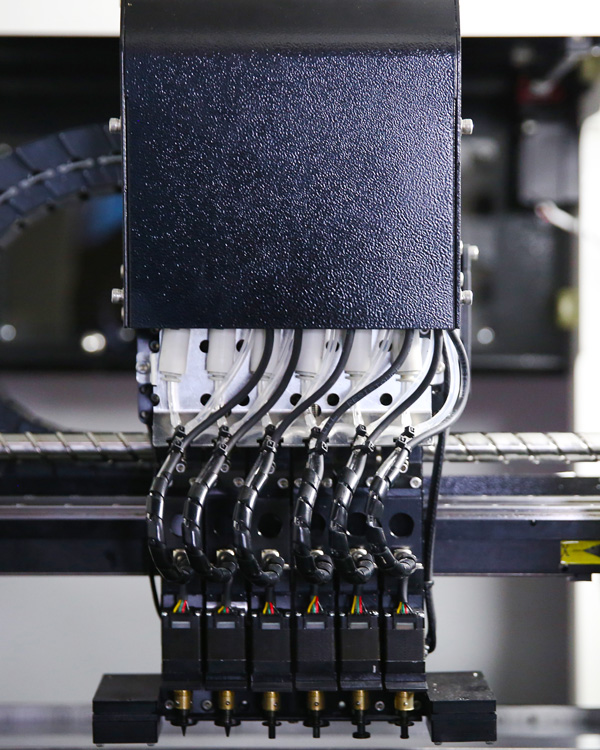

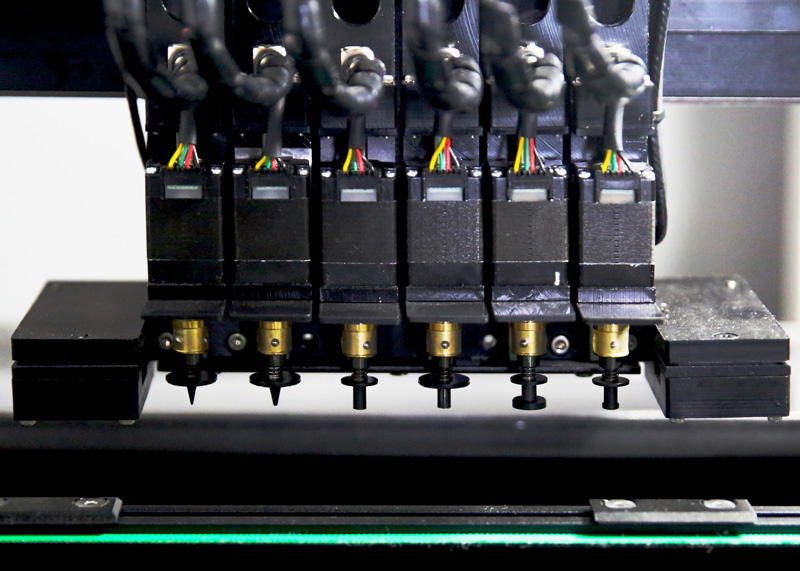

Pick and Place Machine Mounting Head

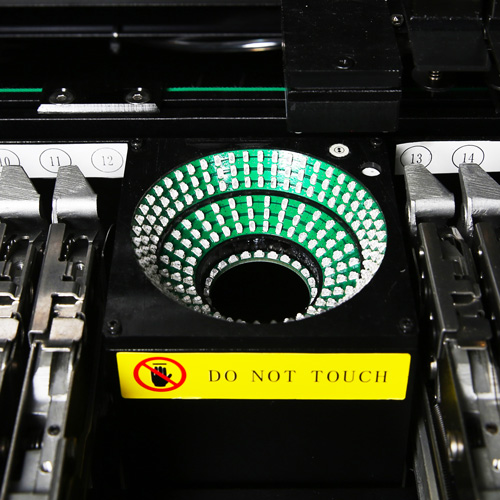

Equips with 2 mark cameras to ensure that all picking positions can be photographed.

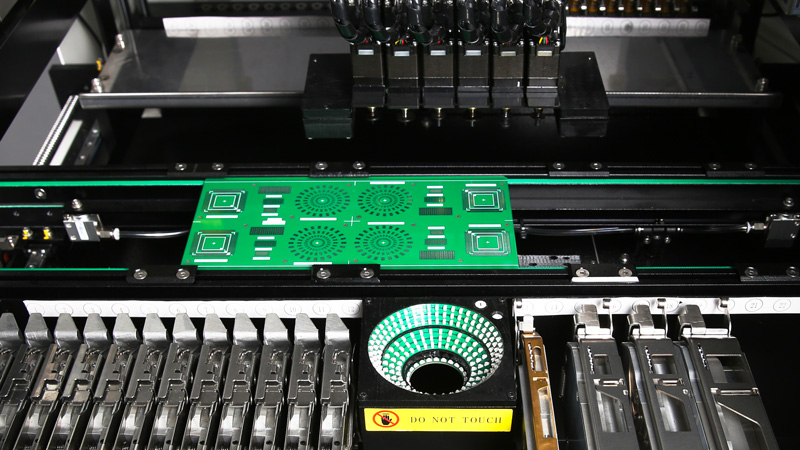

Pick and place machine applicale for the maximum PCB width at 300mm,meets most of the PCB sizes.

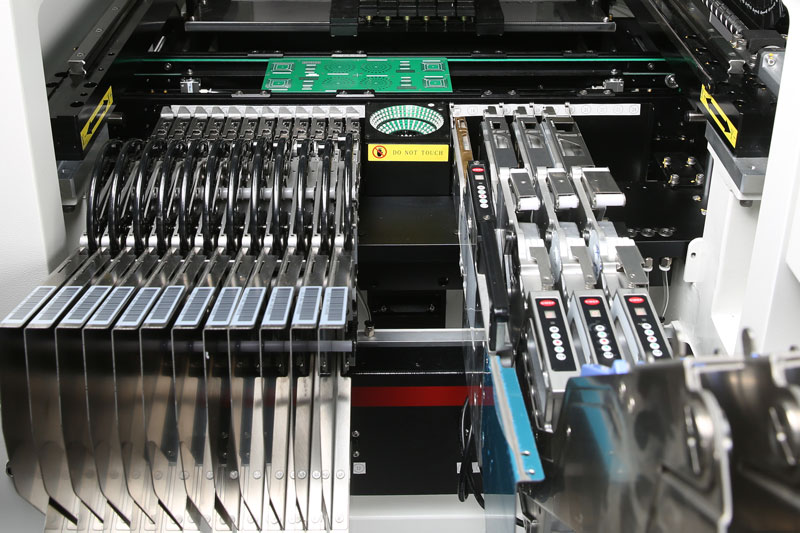

Supports both electric feeder and pneumatic feeder at max 53 slots tape reel feeders with machine width 800mm only,to ensure the high efficiency with flexible & worthiest space.
