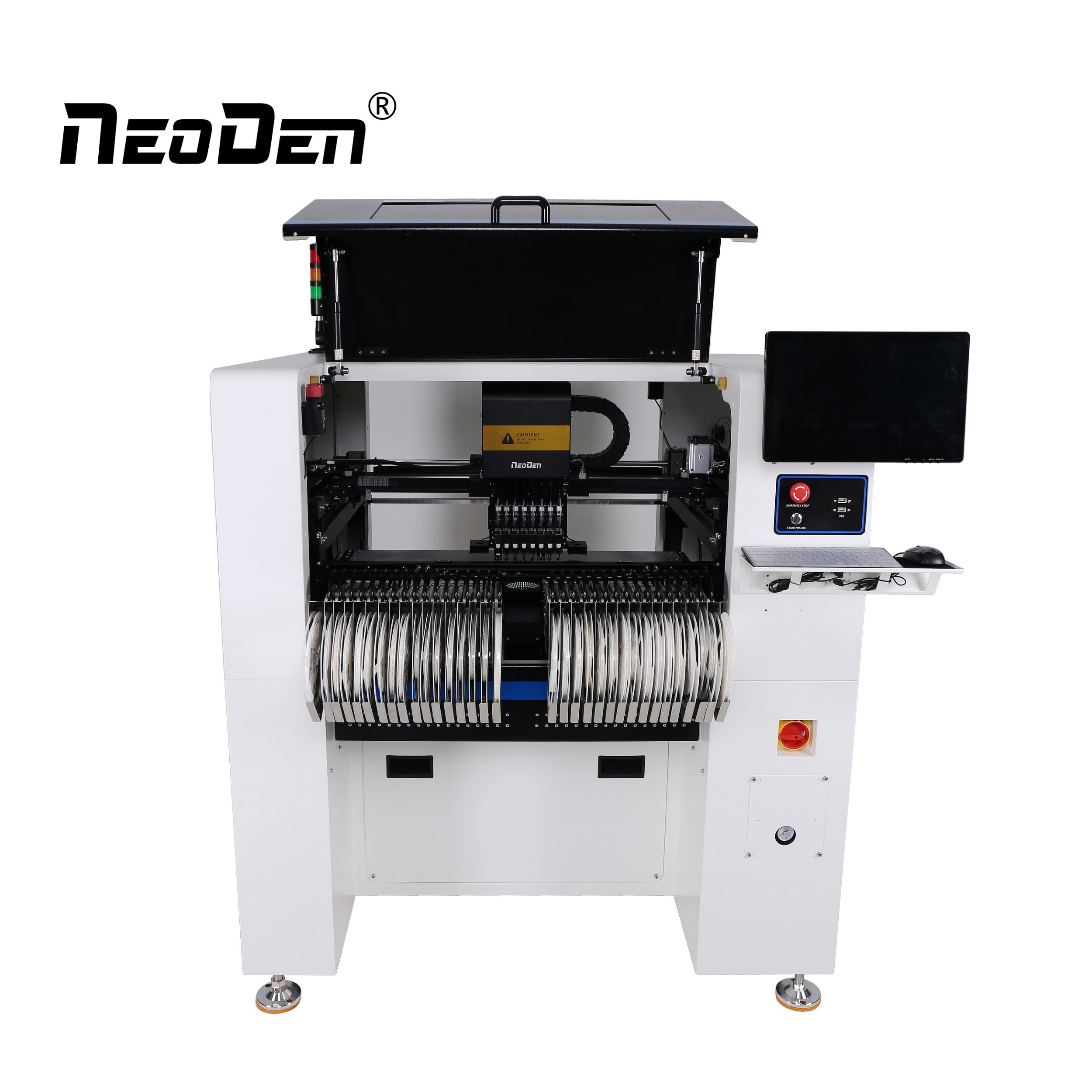

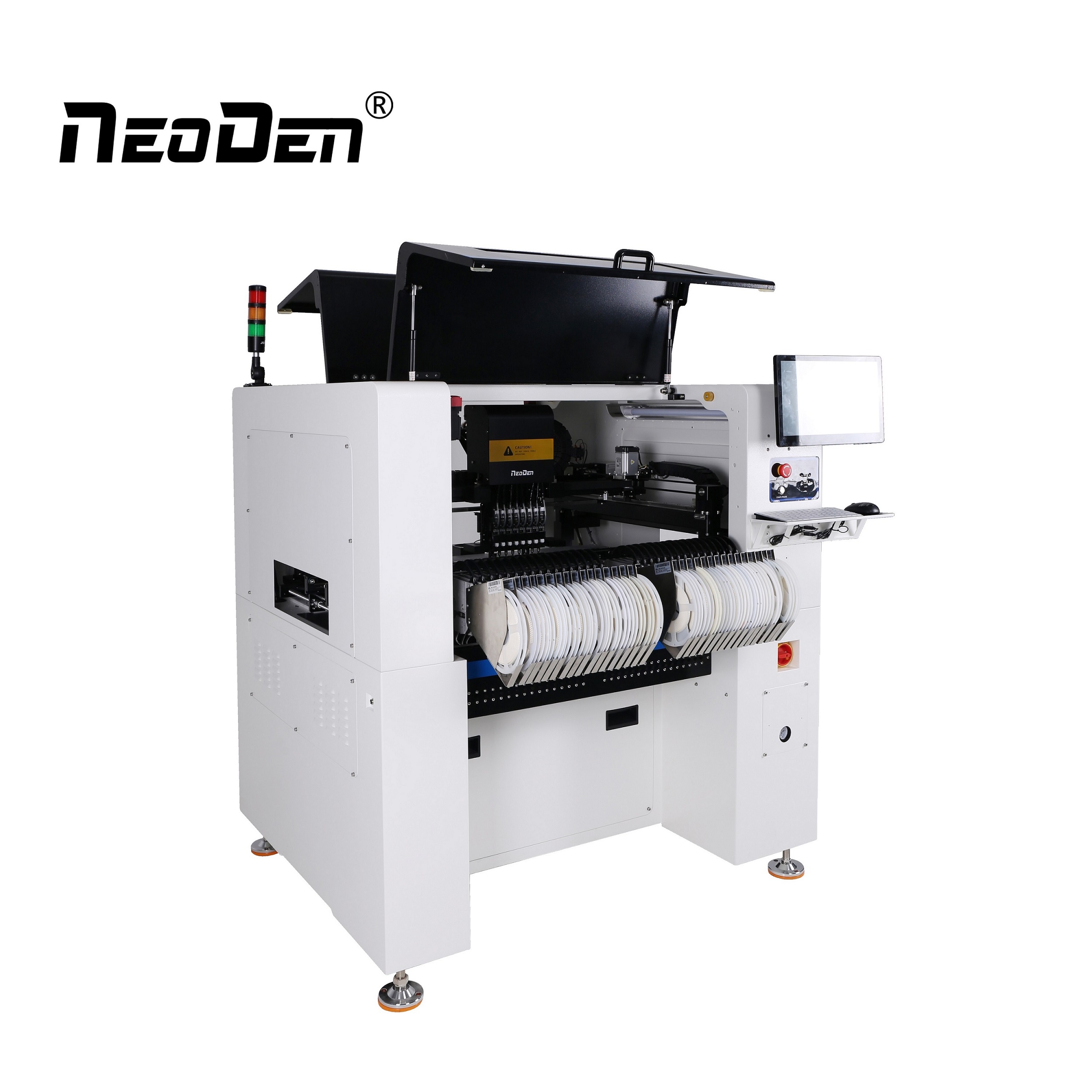

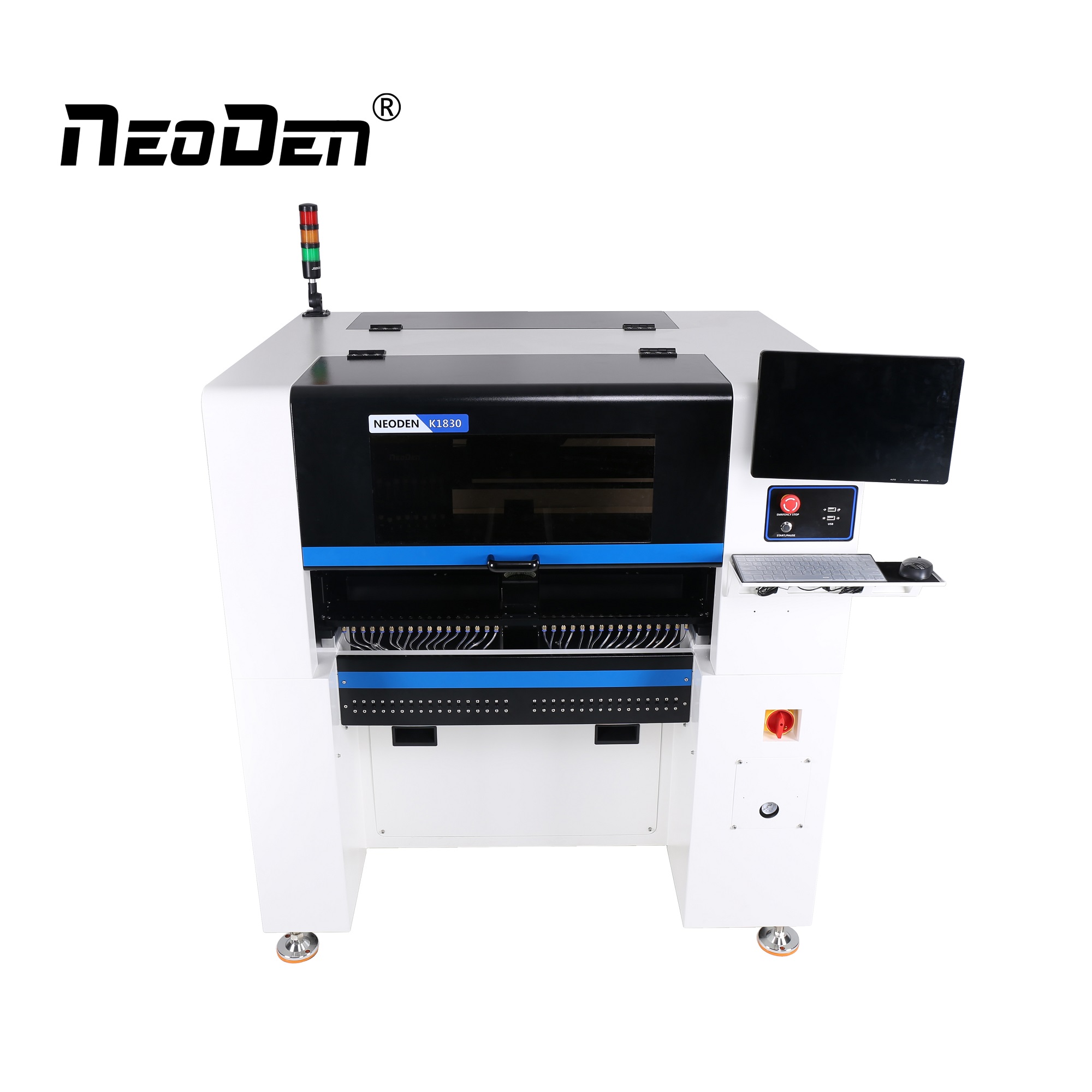

NeoDen K1830 Pick and Place Machine
Closed loop Servo control system with feedback makes the machine to function more accurate.
NeoDen K1830 Pick and Place Machine
“Product Information”
| Model | NeoDen K1830 pick and place machine |
| Nozzle Q'ty | 8 |

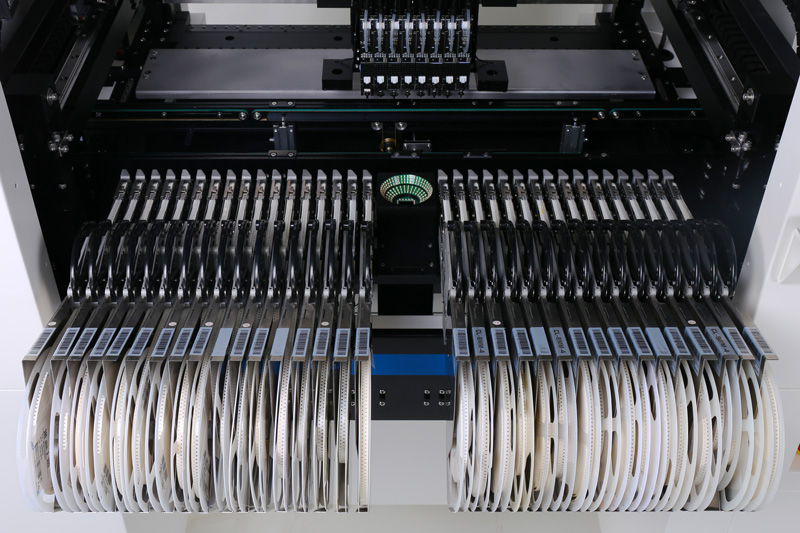

| Number of Tape reel Feeders | 66 (Electric/Pneumatic) |
| Number of IC Tray | 10 |
| Placement Area | 540mm*300mm |
| MAX Mounting Height | 18mm |
| XY Drive motor | Panasonic A6 servo motor |
| Maximum Mounting Speed | 16000CPH |
| Compressed Air | 0.6Mpa |
| Input Power | 220V/50HZ (110V/60HZ Alternative) |
| Net Weight | 280KGS |
| Machine Dimensions | L1290mm*W1060mm*H1300mm |
Features
1. 8 Synchronized Nozzles which ensure a repeatable placement accuracy with high speed.
2. Machine runs on highly stable and secure Linux operating system.
3. Double mark cameras to reach at extreme end feeders for better calibration.

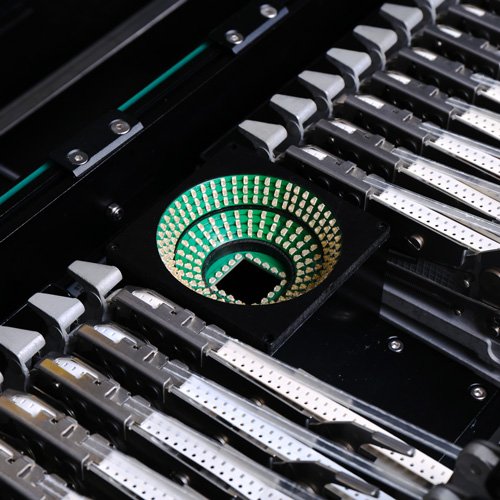

4. High resolution and high speed component camera system improves the overall speed of the machine.
5. Ethernet communication interface for all internal signal travel makes the machine to perform more stable and flexible.
6. Closed loop Servo control system with feedback makes the machine to function more accurate.
7. Picking location of pneumatic feeder can be calibrated automatically and promptly, to ensure easy operation and high efficiency.
8. PCB location can be calibrated automatically and promptly, based on the correct and specific placement request.
Details
“Product Display”

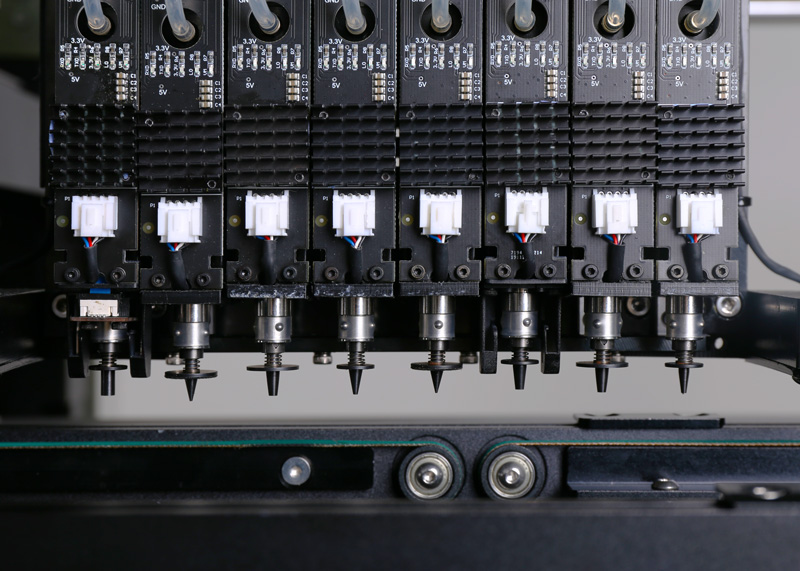

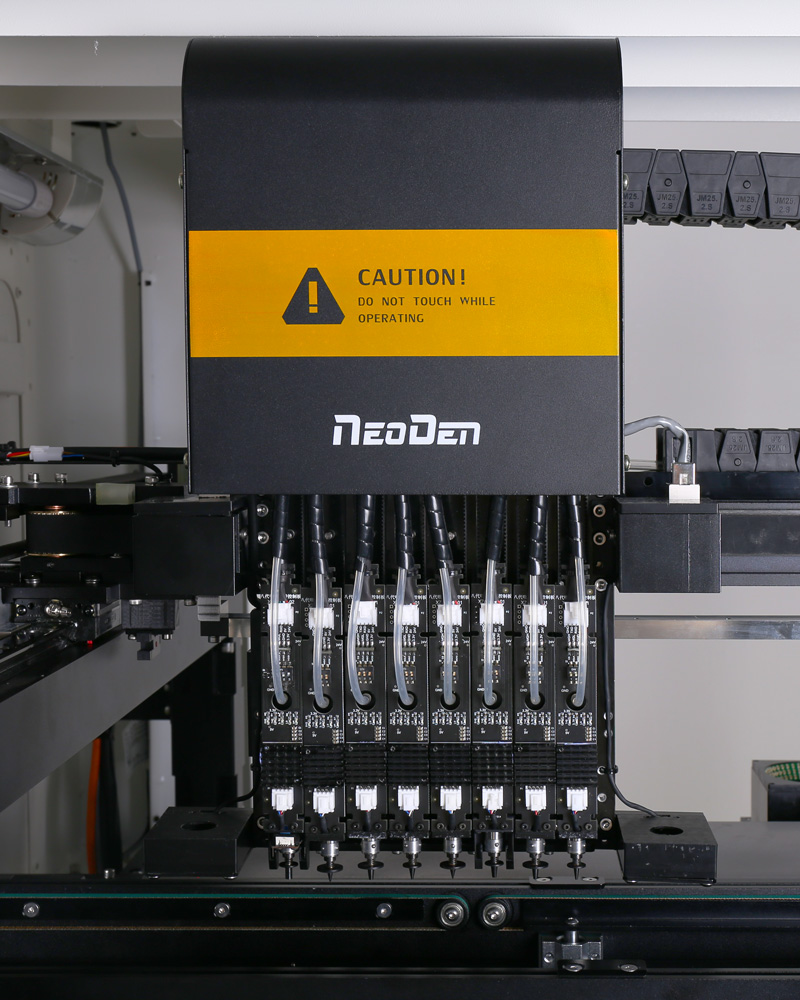

Pick and Place Machine Mounting Head
Double mark cameras to reach at extreme end feeders for better calibration.
Machine runs on highly stable and secure Linux operating system.

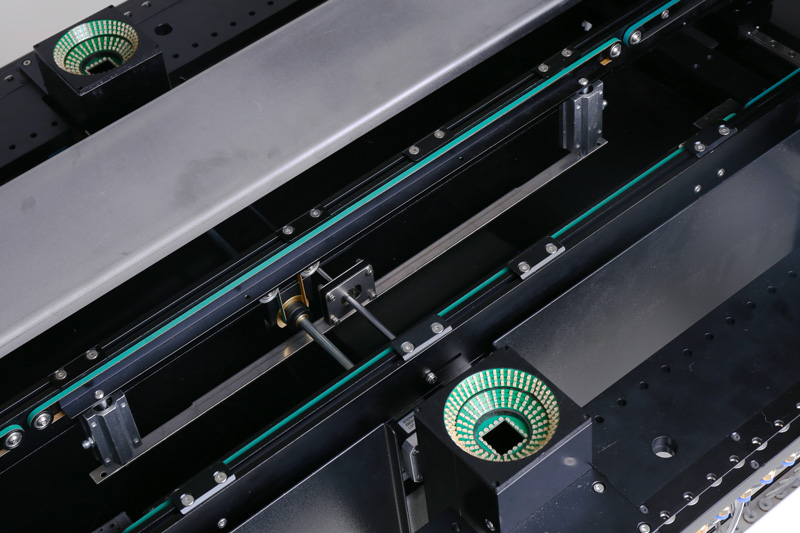

PCB location can be calibrated automatically and promptly, based on the correct and specific placement request.
