Spotlights

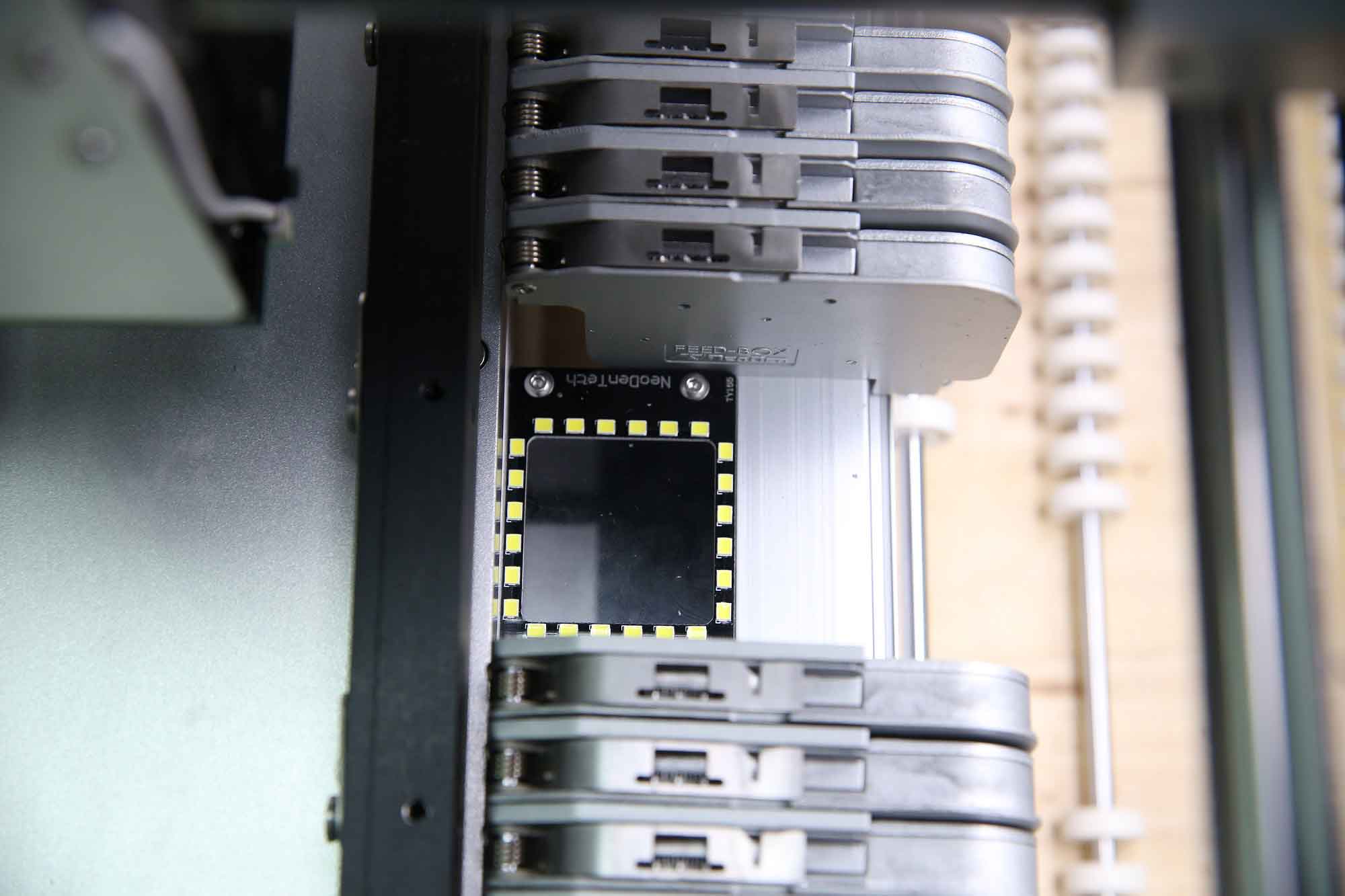

1.Vision system

An up-looking camera and a down-looking camera identifies and calibrates the different components simultaneously, and tremendously improves the accuracy of placement from 0201 to BGA.

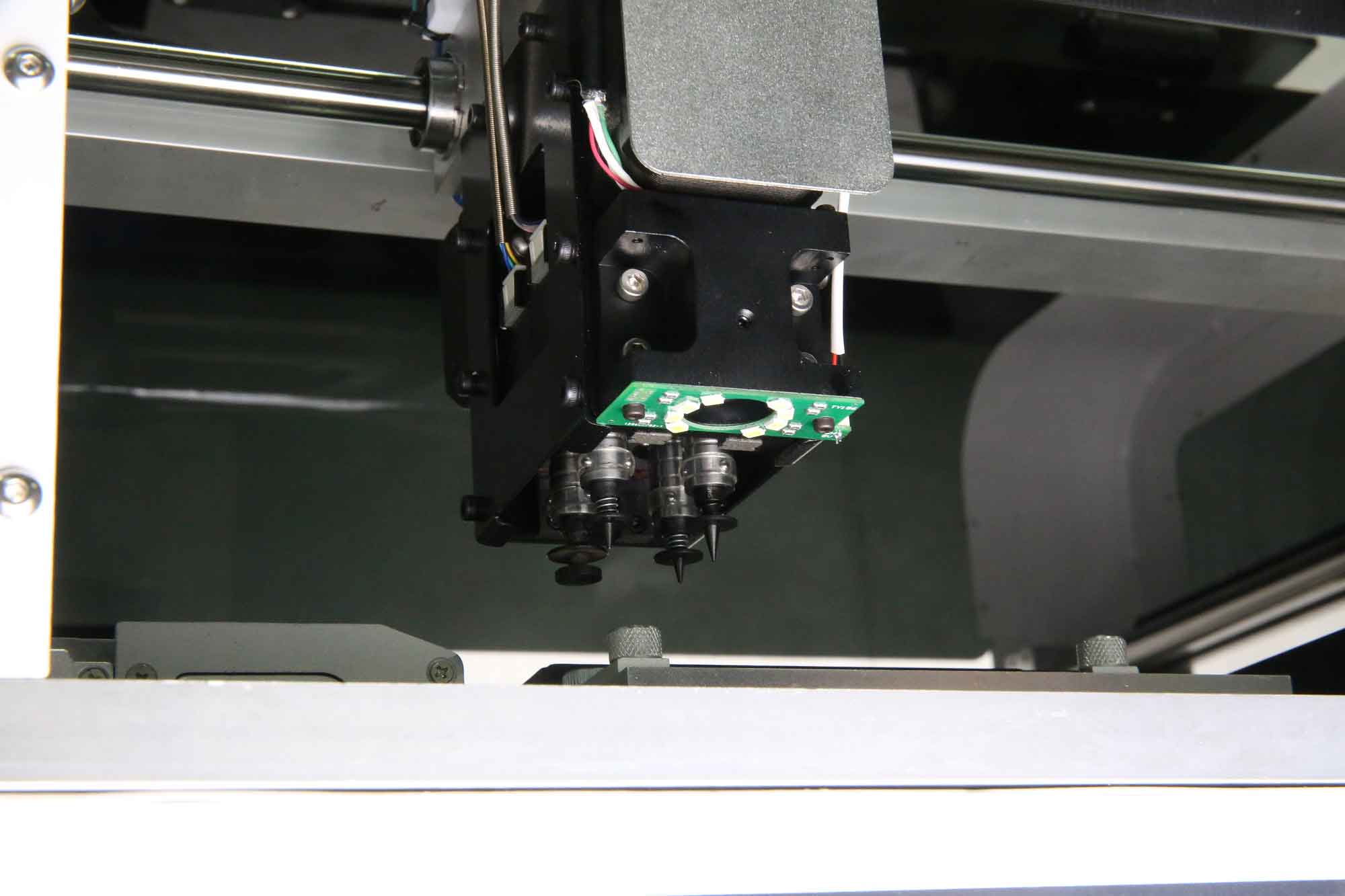

2. Four precision heads

4 high-precision placement heads with ±180° rotation that adopts suspended, fully symmetric and high degree of coupling way, to ensure it can mount components with higher space, more gentle and more accurate.

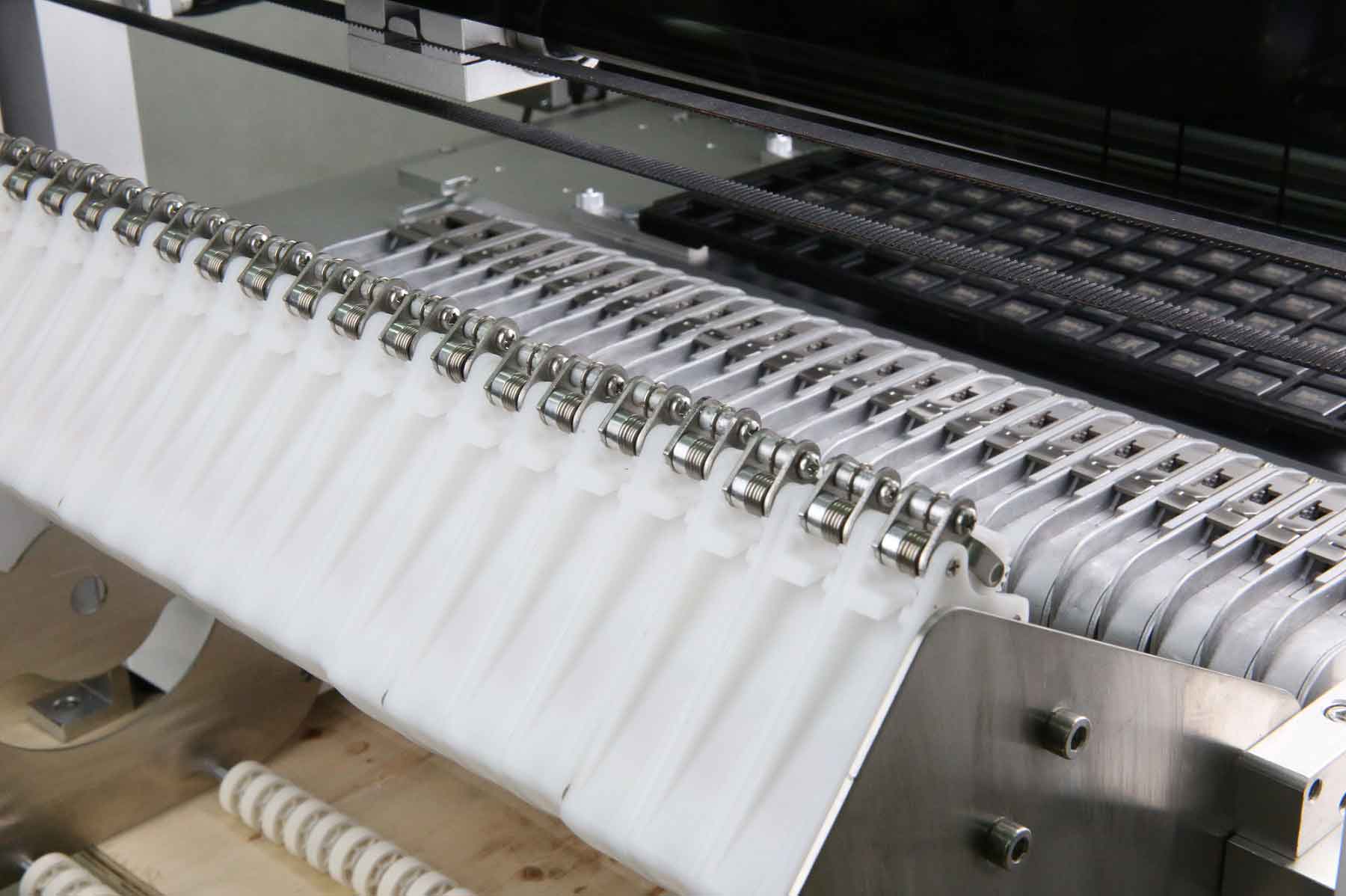

3. Auto Electronic Feeders

Adopts feeding error corrections technique to help smooth the picking and reduce the deviation.

4. Auto Rails Achieve Continuous Placement

1.5m auto rails could be connected with universal conveyors to achieve continuous placement.

5. General conveyor is supported

With a conveyor port, One-Stop SMT production line can be setup, which is more time-saving and labor-saving.

6. Supports remote system upgrade

NeoDen will provide a life-long technical service and system upgrade.

7. Industrial PC motherboard

32G solid state drives, read/write faster and more stable, with power-off protection function.

Specification
