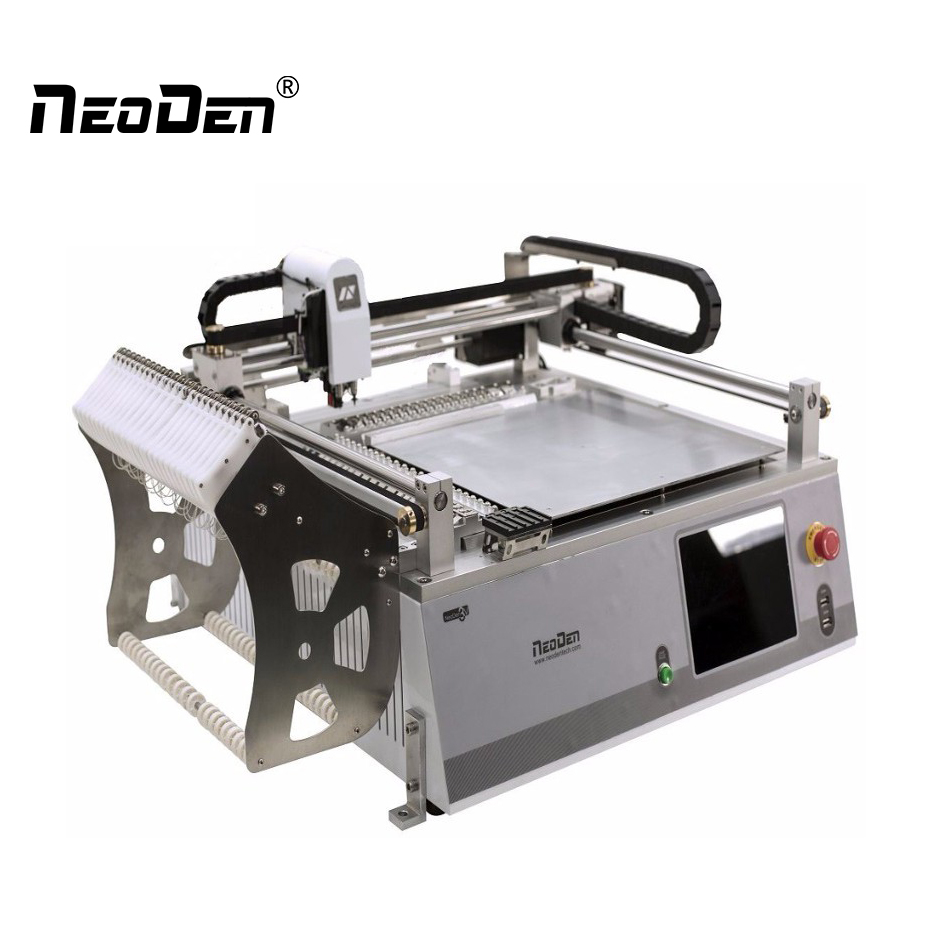

NeoDen 3V-S Pick and Place Machine
Spotlights

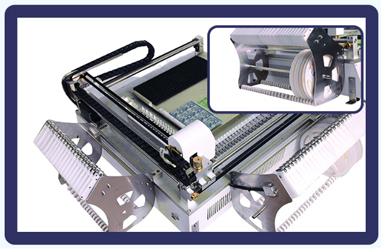

1. Vision system. An up-looking camera identifies and calibrates the different components, and tremendously improves. the accuracy of placement from 0402 to TQFP.

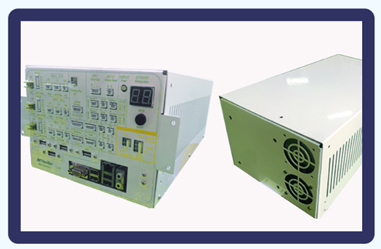

2. Integrated Controller. More stable performance and easier to do maintenance.
3. Automatic discharging device with electronic magnetic pressure type gear.
4. Mechanical correction for IC mounting.
5. Automatic recover function of step out.
6. Flexible PCB positioning function.
7. Supports remote system upgrade, NeoDen will provide a life-long technical service and system upgrade.
Specification
|
Product Name |
NeoDen 3V-S Pick and Place Machine |
||
|
Machine style |
Single gantry with 2 heads |
||
|
Alignment |
Stage Vision |
||
|
Placement Rate |
Vision on |
3,500CPH |
|
|
Vision off |
5,000CPH |
||
|
Feeder Capacity |
Tape feeder:25(all 8mm) |
||
|
Vibration feeder:5 |
|||
|
Tray feeder:10 |
|||
|
Component Range |
Smallest Size |
0402(01005 inch) |
|
|
Largest Size |
TQFP100 (Lead Pitch 0.5mm) |
||
|
Max Height |
5mm |
||
|
Rotation |
±180° |
||
|
Placement Accuracy |
±0.02mm |
||
|
Board Dimension(mm) |
Maximum |
320 x 420mm |
|
|
Operation System |
WindowsXP-NOVA |
||
|
Electricity Supply |
110V/220V |
||
|
Power |
160~200W |
||
|
External Dimensions(mm) |
Machine size |
820(L)x650(W)x410(H) |
|
|
Net Weight |
55kgs |
||
|
Numbers of Pumps |
3 |
||
