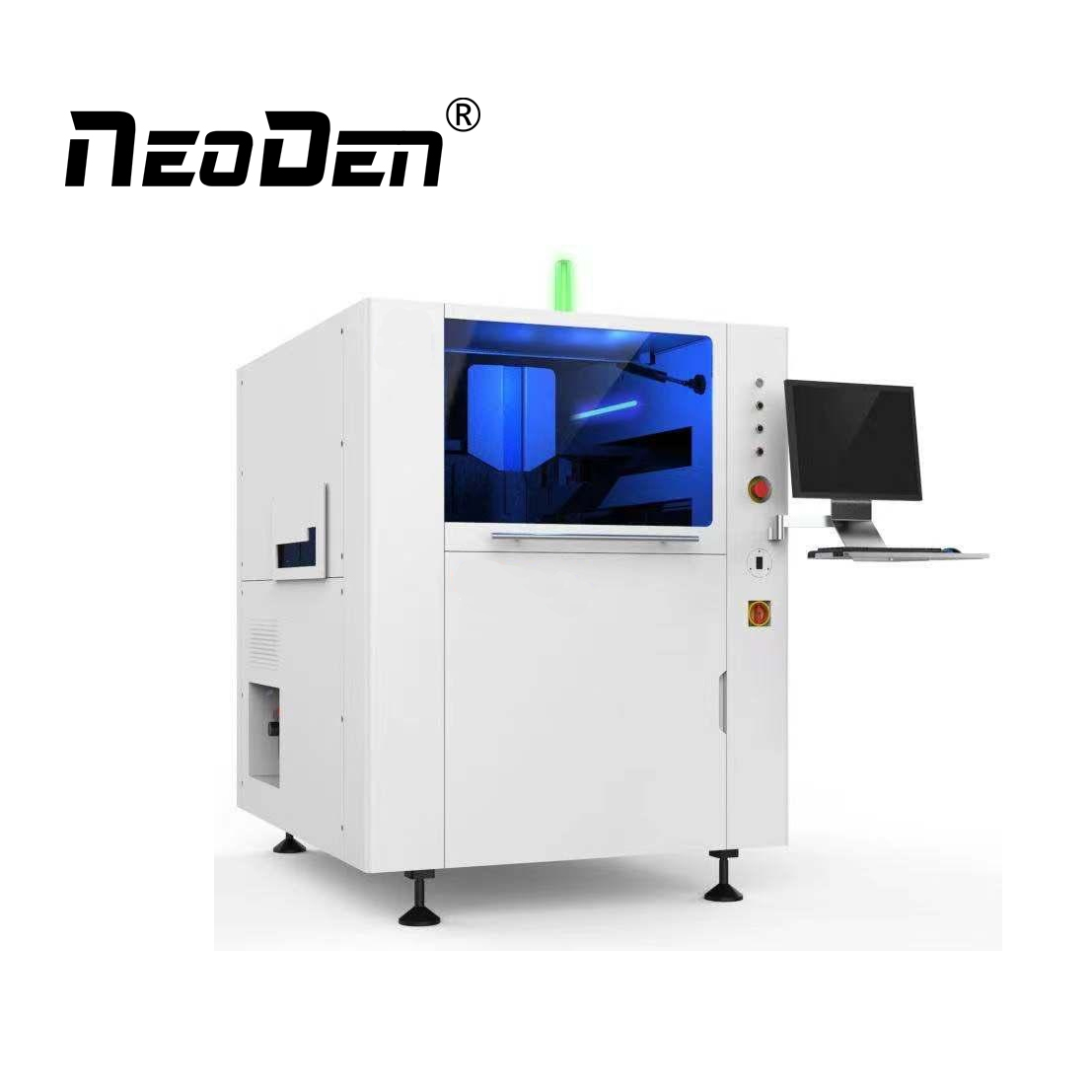

NeoDen ND1 Automatic Solder Paste Printer
Automatic solder paste printer has high stability CCD camera system. Four-way light source adjustable, with uniform illumination and the perfect image collection.
NeoDen ND1 Stencil Printer
“Product Information”
| Model | NeoDen ND1 |
| Max. plate size | 450mm x 350mm |
| Minimum plate size | 50mm x 50mm |
| PCB thickness | 0.6mm ~ 14mm |
| Warping quantity | Max. PCB diagonal 1% |
| Max. plate weight | 10Kg |
| Transmission speed | 1500mm /second (Max) |
| Power | AC220V ± 10%, 50/ 60HZ, 15A |
| Machine weight | 1000Kg |
Features
Transfer track direction: Left – Right, Right – Left, Left – Left, Right - Right
Transmission mode: Section-type track
PCB clamp mode
Software adjustable pressure of the elastic side pressure
Option:
1. Overall bottom suction chamber vacuum.
2. Bottom multipoint partial vacuum.
3. Edge lock clamping plate.
Board support method Magnetic thimble, special work holding device(option: Grid-Lok)
Print parameters
Print head Closed-loop print head straight line motor
Template frame size: 370mm x 470mm ~ 737mm x 737mm
Max. print area (X x Y) 450mm x 350mm
About Us

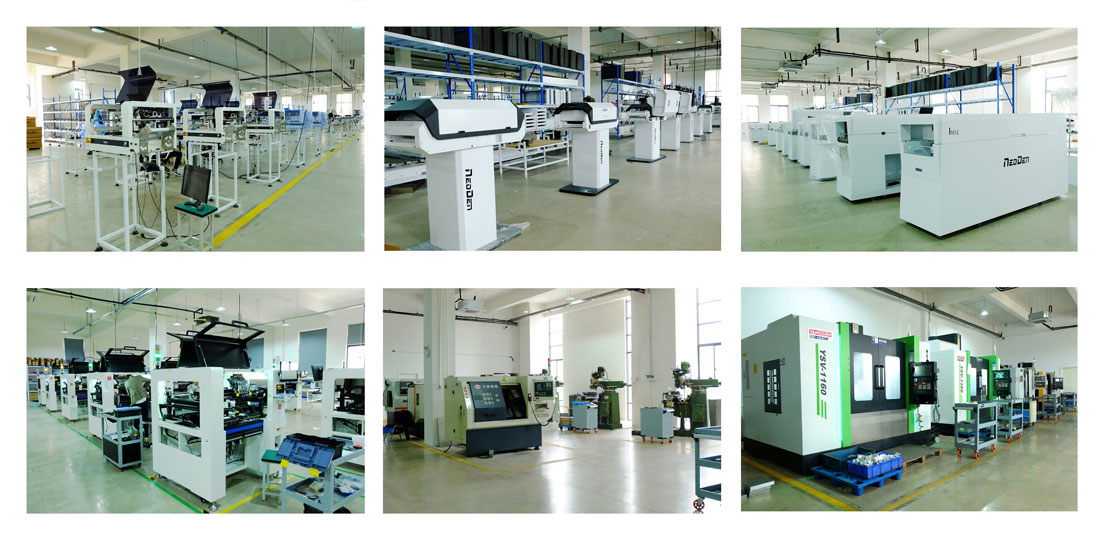

Factory
Quick facts about NeoDen
- Established in 2010, 200+ employees, 8000+ Sq.m. factory.
- NeoDen products: Smart series PNP machine, NeoDen K1830, NeoDen4, NeoDen3V, NeoDen7, NeoDen6, TM220A, TM240A, TM245P, reflow oven IN6, IN12, Solder paste printer FP2636, PM3040.
- Successful 10000+ customers across the globe.
- 30+ Global Agents covered in Asia, Europe, America, Oceania and Africa.
- R&D Center: 3 R&D departments with 25+ professional R&D engineers.
- Listed with CE and got 50+ patents.
- 30+ quality control and technical support engineers, 15+ senior international sales, timely customer responding within 8 hours, professional solutions providing within 24 hours.
-
