NeoDen N10P SMT Pick and Place Machine
IC camera improves the size of IC photos and realizes automatic calibration with automatic nozzle change.

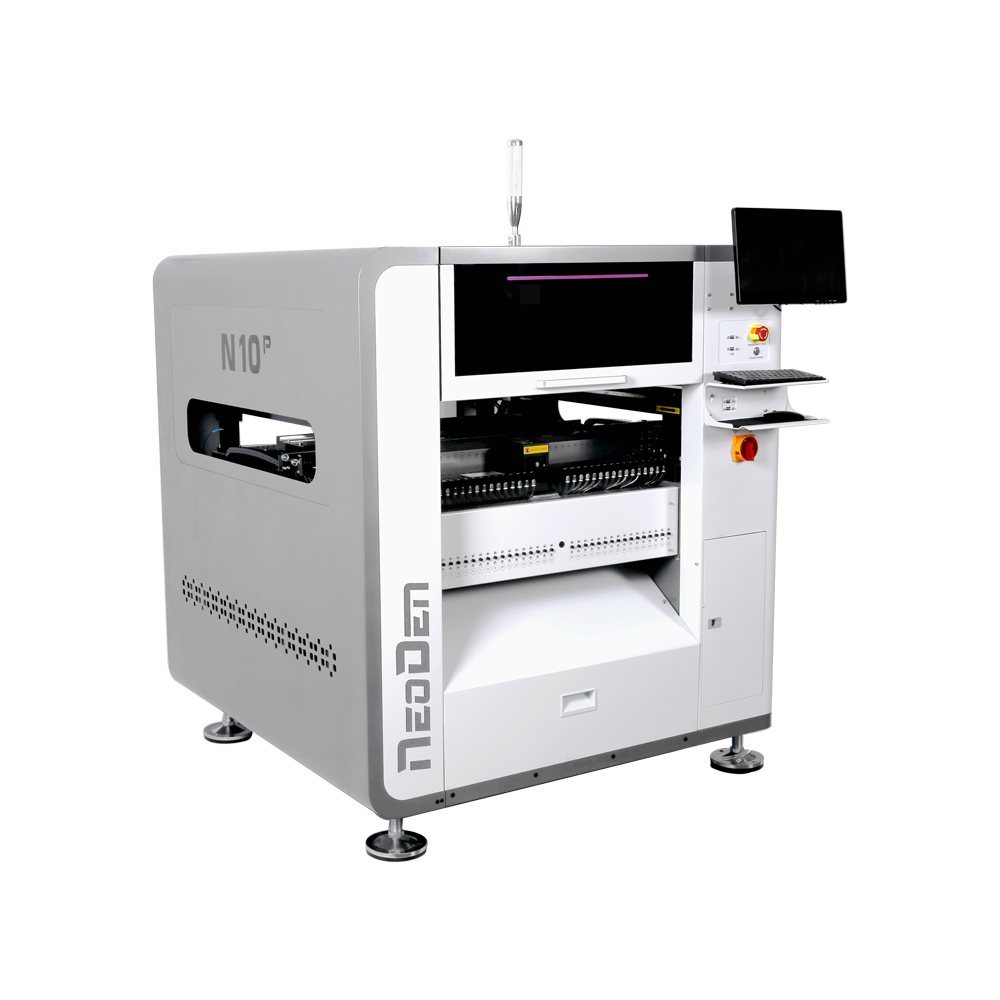

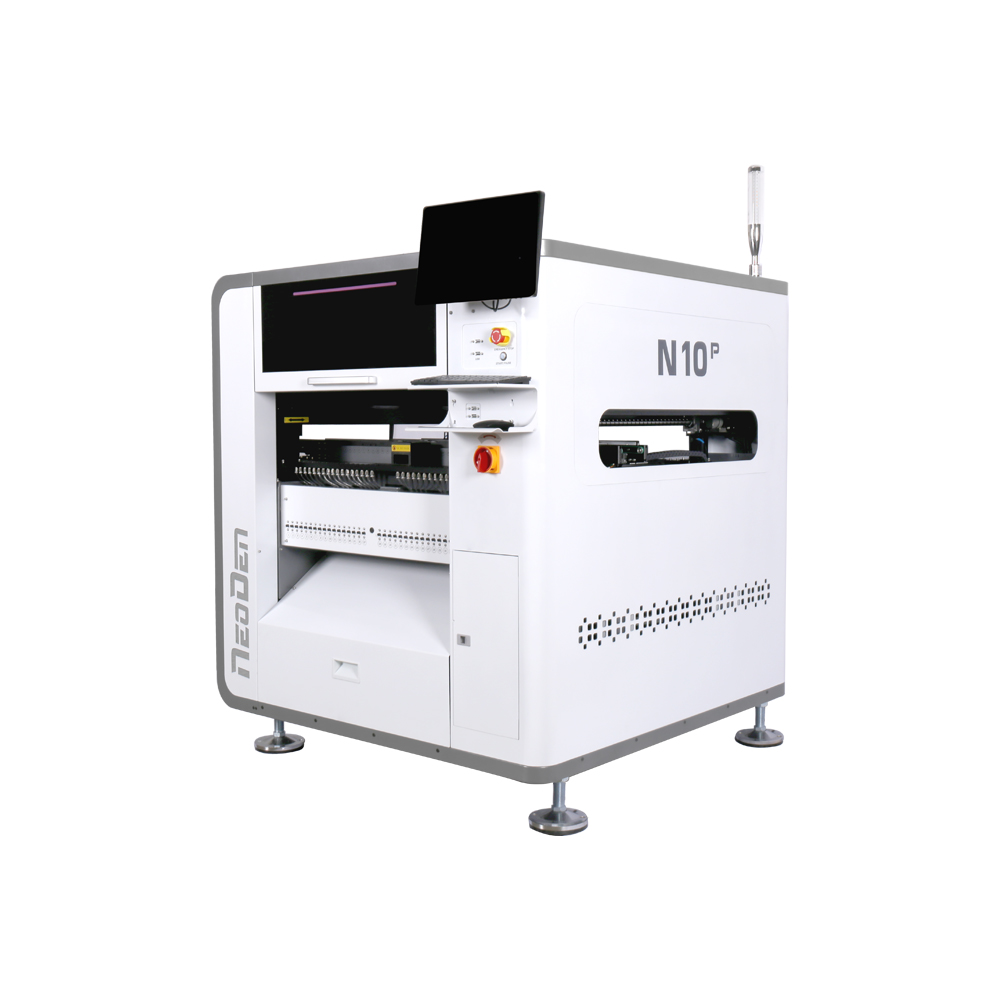

NeoDen N10P SMT Machine
“Product Information”
| Model | NeoDen N10P |
| Nozzle Q'ty | 8 |
| Number of Tape reel Feeders | 80pcs (33 front+47 rear) |
| Max PCB Size |
450*1500mm (without IC tray) 395*1500mm (with IC tray) |
| MAX Mounting Height | 16mm |
| XY Drive motor | Panasonic A6 750W servo motor |
| Maximum Mounting Speed | 20,000CPH |
| Compressed Air | 0.6-0.8Mpa, Max. flow rate 37L/min |
| Voltage | AC110V/220V，50Hz/60Hz |
| Net Weight | 1,000KGS |
| Machine Dimensions | L1289mm*W1254mm*H1386mm |
Features
1. 8 heads with fully closed-loop control system support to pick up components simultaneously with maximum speed 20,000CPH.
2. Support 80 tape feeders, 20 stick feeders and 60 tray feeders, which achieve. Allows mixed use of electric and pneumatic feeders in the same feeder base.
3. Measuring of nozzle air pressure to improve work stability and eliminate obstacles.
4. Front and rear with 2 fourth generation high speed flying camera recognition systems, US ON sensors, 28mm industrial lens, for flying shots and high accuracy recognition.
Details
“Product Display”
SMT Mounting Heads

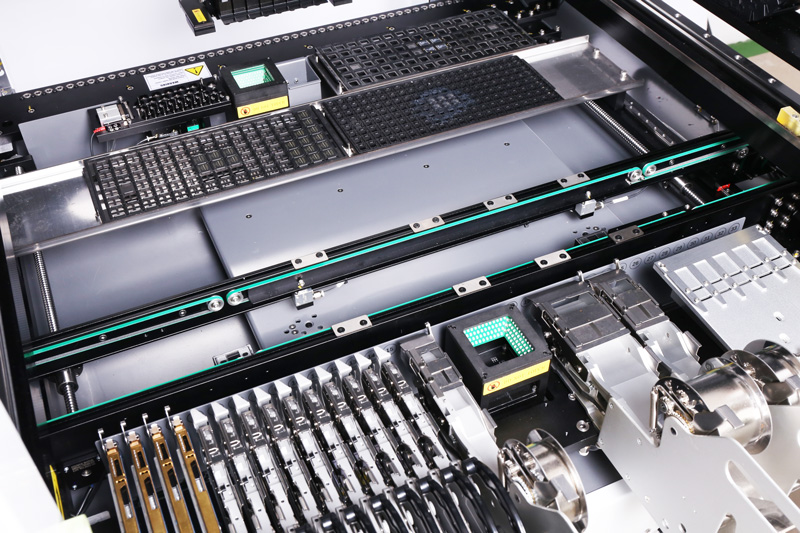

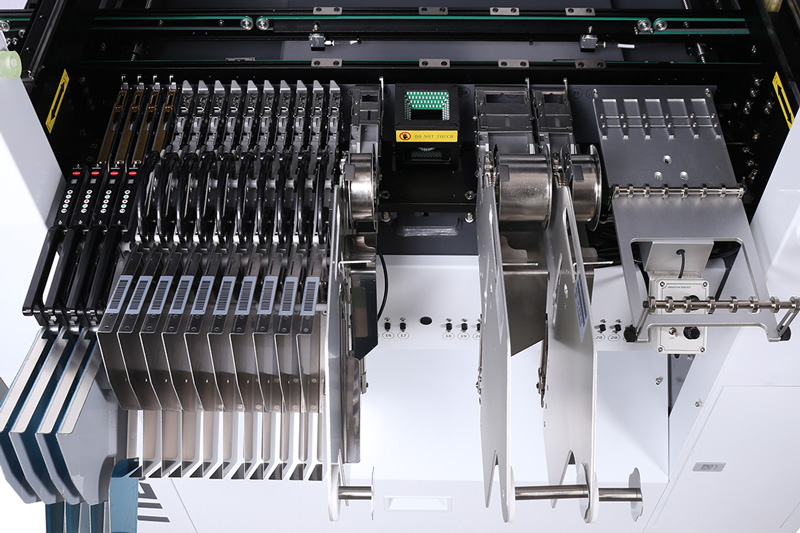

Support 80 tape feeders, 20 stick feeders and 60 tray feeders, which achieve . Allows mixed use of electric and pneumatic feeders in the same feeder base.

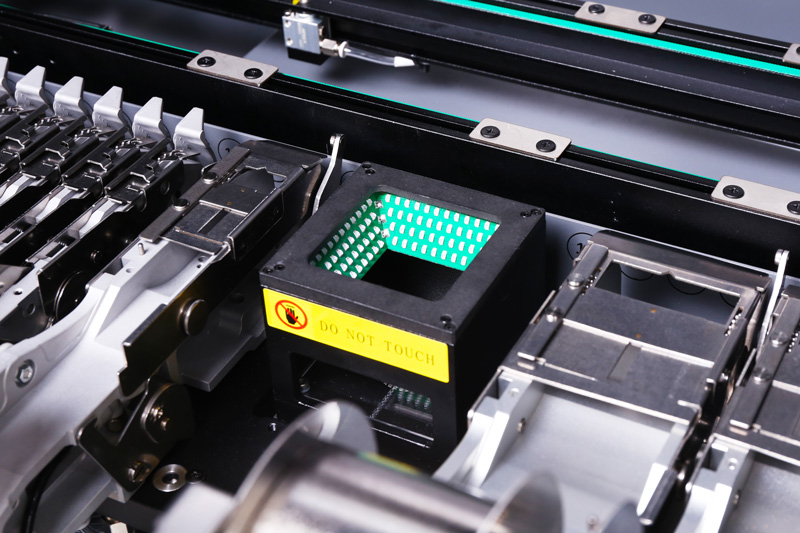

Front and rear with 2 fourth generation high speed flying camera recognition systems, US ON sensors, 28mm industrial lens, for flying shots and high accuracy recognition.
Automatic calibration of nozzle height, manpower can be utilized efficiently.
About Us
Factory
Quick facts about NeoDen
- Established in 2010, 200+ employees, 8000+ Sq.m. factory.
- NeoDen products: Smart series PNP machine, NeoDen K1830, NeoDen4, NeoDen3V, NeoDen7, NeoDen6, TM220A, TM240A, TM245P, reflow oven IN6, IN12, Solder paste printer FP2636, PM3040.
- Successful 10000+ customers across the globe.
- 30+ Global Agents covered in Asia, Europe, America, Oceania and Africa.
- R&D Center: 3 R&D departments with 25+ professional R&D engineers.
- Listed with CE and got 50+ patents.
- 30+ quality control and technical support engineers, 15+ senior international sales, timely customer responding within 8 hours, professional solutions providing within 24 hours.
Certification
Exhibition
FAQ
Q1: How can I buy machine from you?
A: (1) Consult us on line or by e-mail.
(2) Negotiate and confirm the final price, shipping, payment method and other terms.
(3) Send you the perfroma invoice and confirm your order.
(4) Make the payment according to the method put on proforma nvoice.
(5) We prepare your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
(6) Send your order via express or by air or by sea.
Q2: Are you a trade company or a manufacturer?
A: We are an professional manufacturer specialized in SMT Machine, Pick and Place Machine, Reflow Oven, Screen Printer, SMT Production Line and other SMT Products.
Q3: How about the warranty?
A: We support 2 year warranty. We will help you in time.
All the spare parts will be provided free of charge for you within the warranty period.
