NeoDen ND2 Automatic SMT Paste Printer
Feature
1. Accurate Optical Positioning System
Four way light source is adjustable, light intensity is adjustable, light is uniform, and image acquisition is more perfect.

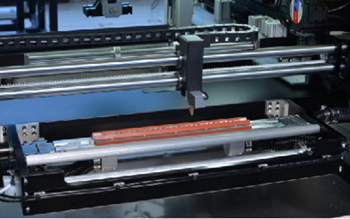

2. High efficiency and high adaptability stencil cleaning system
Soft wear-resistant rubber wiping plate, cleaning methods of dry, wet and vacuum
thorough cleaning, convenient disassembly.
3. Intelligent squeegee system
Intelligent programmable setting, two independent direct motors driven squeegee, built- in precise pressure control system.
4. Special PCB thickness adaptive system
The platform height is automatically calibrated according to PCB thickness setting, which is intelligent, fast, simple and reliable in structure.
5. Solder Paste Printing Quality Inspection
2D function can quickly detect the printing defects, the detection points can be increased arbitrarily.
6. Printing Axis Servo Drive
Improve accuracy grade, provide good printing control platform, operational stability, extend the service life.
Specification
| Product Name |
NeoDen ND2 Automatic SMT Paste Printer |
|
Template frame size |
470mm*370mm~737 mm*737 mm |
|
Maximum printing area(X*Y) |
450mm*350mm |
|
Squeegee length |
300mm (optional with length of 200mm-500mm) |
|
Squeegee height |
65±1mm |
|
Printing speed |
0~200mm/s |
|
Printing pressure |
0.5kg-10Kg |
|
PCB thickness |
0.4mm~6mm |
|
Warpage |
≤1% Diagonal |
|
Maximum board weight |
3Kg |
|
Board margin gap |
Configuration to 3mm |
|
Maximum bottom gap |
20mm |
|
Transfer height from the ground |
900±40mm |
|
Transfer speed |
1500mm/s(Max) |
|
Transfer orbit direction |
L-R,R-L,L-L,R-R |
|
Machine weight |
Appro.1000Kg |
